Basic Client-Side Technology

Session Management

• Motivation:
  • Problem: HTTP is stateless
  • Static content: No problem
  • Dynamic content impossible (e.g., shopping cart)
• Goal: Session management
  • Session: Period of activity between a user and computer
  • Session ID: Random number (hexadecimal, should be unique) identifying the session
  • Server: Mapping between session ID and user
• Approaches
  • HTTP Authentication
  • Session ID in URL
  • Cookies

HTTP Authentication

• Idea: Use HTTP authentication (send credentials via request)
• Problem:
  • Session end can’t be determined
  • Non-trivial logout (browser always sends authentication)
  • Authentication provided by Web server (not application)

Session Identifier in URL

• Server generates session ID on first page visit
• Important: Session ID should be in all links
  • e.g., http://example.org?cart.html?sess=97275948
• Problem:
  • Link sharing (leakage of session ID)
  • Referer header contains session ID (leakage)
  • URL rewriting prone to errors

Cookies

• Cookie: Key-value-pair of text
• e.g., Set-Cookie: foo=bar; HttpOnly

Directives

• Expires=<date>
  • Set date of expiry
  • e.g., deletion
• Domain=<domain>
  • Host to which the Cookie will be sent
  • Default: Set only for current domain (not including subdomains)
  • If specified, then subdomains are included
  • Default Internet Explorer: Set cookie for all sub-domains
• Path=<path>
  • Send Cookie for specific paths/sub-paths
  • e.g. /docs
• HttpOnly (disallow JavaScript access)
• Secure
  • Transmit only over secure HTTPS connection
  • Can only be set from a secure HTTPS connection
• SameSite=Strict/Lax/None
  • Control cross-origin requests (protection against CSRF)
  • None:
    • Send cookies with same-site and cross-site requests
  • Strict:
    • Only send cookies if origin site is the site that set the cookie
    • Never send with cross-origin requests
    • E.g., even following a link
  • Lax:
    • Only send cookies with GET/HEAD/OPTIONS
    • Default in modern browsers

Lifecycle

• Server
  • Generates session ID on first visit
  • Sent via Set-Cookie header
• Client
  • Saves cookie persistent
  • Always sent cookie to server
    • Regardless of referrer
    • See Expires option
    • Default: Delete cookie on browser close
• End: Delete cookie/delete server state

Form-based Authentication

• Default of today’s applications
• Workflow
  • Server provides HTML form
  • User fills form
  • If correct, server sets session cookie
• Problem: Password field (simple text field)
  • Accessible to JavaScript
  • Content sent in clear text to server

Problems

• Cookies were not designed for security
• Cookies readable/writeable from JavaScript (except HttpOnly)
• If set for a domain, valid for all subdomains
• Sent with any requests (see SameSite)
• Security problems:
  • Session Hijacking (attacker steals session ID from victim)
  • Session Fixation (attacker palms session ID off on victim)
  • Cross-Site Request Forgery
  • Cross-Site Script Inclusion

JavaScript

• JavaScript core (ECMAScript, the language)
• Document Object Model (API to the rendered HTML document)
• Browser APIs (Math, WebStorage)

JavaScript Core

• Properties
  • Functional
  • Prototype-based object model
  • No class hierarchy
  • No concurrency model (single-threaded, event-driven concurrency)
  • Allows for closures (anonymous function with context)
  • Allows for anonymous functions

JavaScript in HTML

• Parsing blocks:
  • Script-tag (<script>...</script>)
  • Script-tag with source (<script src="..."></script>)
  • Event handlers (<a onclick="...">Foo</a>)
• Execution error:
  • Parsing block is skipped
  • Other blocks are not affected
• HTML rendering is stopped until script is executed
• Scripts run in same global space (including page)

JavaScript Objects

• Dynamic typing
• Implicit type casting
• Types:
  • Primitive types (strings, numerical)
  • Object types
• Objects are instances of functions
  • e.g., function a(){}; var x new a();
• Getters/Setters using defineProperty
• Almost everything has toString()

Prototype-based Object Model

• Objects have prototype
• Prototype chaining:
  • Prototype may have prototype as well
• Function call is propagated until found or prototype is null)
• Objects point to superclass prototype via __proto__
• Behavior is dynamic:
  • Prototype change affects existing objects
  • Prototype can be set during runtime

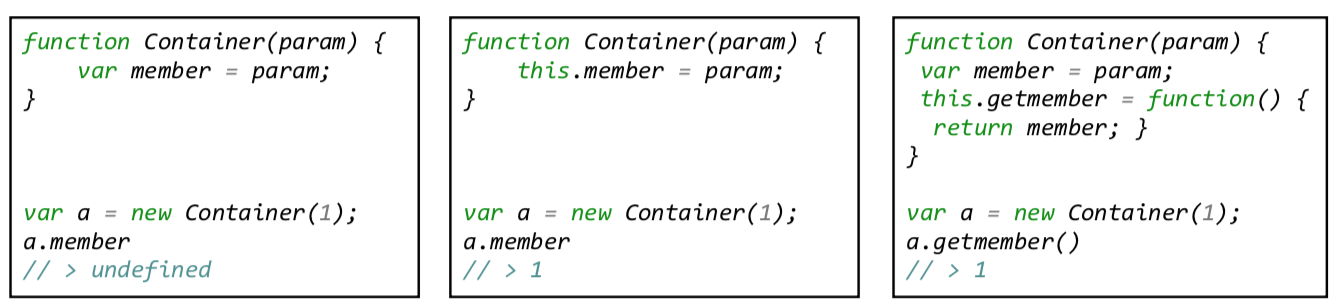

Variables

• Scoping:
  • Global:
    • Variable without var
    • Variable with var in top-level script
  • Local:
    • Variable with var inside function
• Members:
  • Public: this
    • Available from outside
    • e.g., this.member = param
  • Private: var
    • Not accessible from outside
• Properties can be added with defineProperty(obj, name, func)
• Property configurable: bool prevents from modification (raises TypeError)

Document Object Model

• Interface to a rendered HTML/XML page
• Connection between scripts and the loaded page
• Links multiple, other interfaces
• Global object: window

Document Interface

• Name: Document Object Model
• Using document interface
• Representation of rendered document
• HTML tree consists of HTMLElement nodes
• HTML properties are mapped to HTMLElement object
• Methods to manipulate document:
  • document.write(content)
  • element.innerHTML
  • element.<attribute>
  • element.appendChild(c)
• Frames in same window: window.parent, window.frames[], window.top
• Popups: window.open(url)

Location Interface

• Provide URL information
• Members:
  • href: Complete URL including fragment
  • protocol: Protocol
  • host: HTTP host with port
  • hostname: HTTP host without port
  • port: port of HTTP host
  • pathname: Path
  • search: URL query
  • hash: Fragment
• Encoding behavior:
  • Chrome: Everything since 65.0 (before: everything except fragment)
  • Firefox: Everything
  • IE: Nothing

Other APIs

• Navigation (history object)
• WebStorage API
• XMLHttpRequest API
• Browser information
  • e.g., User-Agent, Plug-ins
  • navigator object
• Screen
  • e.g., dimension, color depth
  • screen object
