Server-Side Security

• Focus: Remote Attacker
  • Target the server
• Goal: Compromise remote system

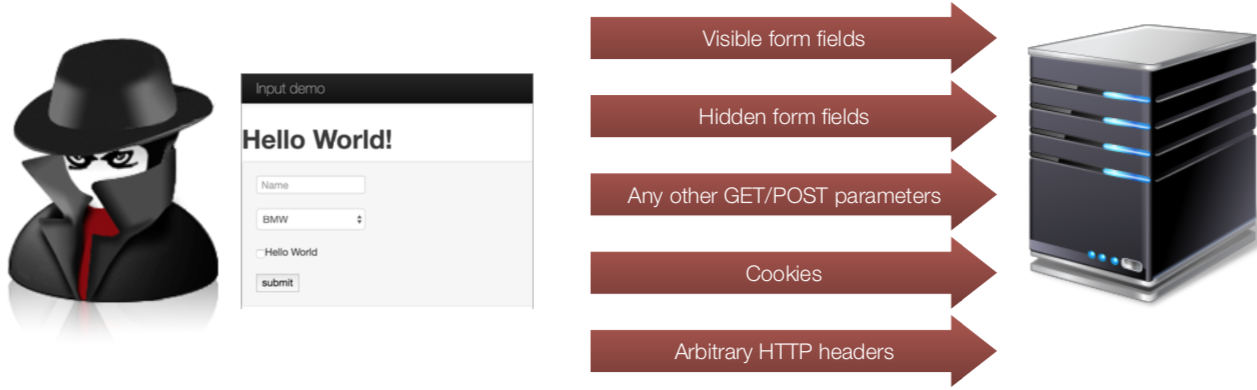

• Possibly malicious input to remote web server:
  • Form fields (hidden + visible)
  • GET/POST parameters
  • Cookies
  • HTTP Headers

SQL Injection

• SQL used for relational databases for
  • Extraction (SELECT)
  • Insertion (INSERT INTO)
  • Updating (UPDATE)
  • Deletion (DELETE FROM)
• Problem: Mixing of code + data
  • SQL Queries are often generated on-the-fly with user input
• Attacks:
  • End literal expression with '
  • Comment rest of query -- /#
  • Comment range /* ... */ (two injection points required)
  • Leak data with UNION statements
    • Respect union-compatibility
    • ' UNION (SELECT 1 FROM ...)
  • Add tautology: a' OR 'a'='a/' OR 1#
• Column reference
  • Name‌ (e.g., id)
  • Index (e.g., 1)
• Guess number of columns:
  • 1. Try ORDER BY <columns> until no error occurs
  • 1. Try UNION SELECT <columns> until no error occurs
  • e.g., x' ORDER BY 1,2 --
• Schema Information
  • MySQL/PostgreSQL
    • Contained in table information_schema.*
    • .schemata: contains schemata (for MySQL: databases, for PostgreSQL: schemata)
    • .tables: accessible tables
    • .columns: Accessible columns
  • SQLite PRAGMA <cmd>
    • stats
    • table_info(<table>)
• Examples:
  • mysql_query("SELECT 1 FROM users WHRE name='".$_GET["name"]."' ...;");
  • a' UNION SELECT table, column FROM information_schema.columns--

Drupageddon

• Real-world example (2014)
• Problem: Attack used Dict instead array (['code' => 1]) and bypassed the automatic enumeration of the array
• Vulnerable line:
  • foreach ($data as $i => $value)
  • Bypass with $data = ['fakeKey' => 1]
• Better: array_values($array): return array values

Blind SQL Injection

• Situation:
  • Query does not return output but amount of rows matched or binary result (blind)
  • e.g., OK and NOT OK
• Attack: Exfiltrate information from DB
• Functions:
  • MID(str, pos, len): Extract len characters from str starting at position pos
  • ORD(str): ASCII code for first char in str
  • LIKE:
    • % for arbitrary amount of chars
    • _ single char
  • IF(condition, then, else):
    • Return then if condition is true, else otherwise
    • e.g., SELECT IF(ORD(str) = 40, 1, 0) FROM ...
  • SLEEP(n): Sleep n seconds
• Approaches:
  • Brute-forcing every single char: \( O(nm) \)
    • Length \( n \)
    • \( m \) possible characters
  • Binary search:
    • Char to ASCII value
    • e.g., ORD(str)
    • Apply binary search \( O(n\log m) \)
  • Reduce character set with LIKE
    • e.g., password LIKE '%a%'
  • Timing-based:
    • Exploit timing behavior (if database answer doesn’t change)
    • e.g., use IF with sleep()
    • e.g., IF(cond, sleep(2), 0)
• Prevention:
  • Main problem: Insecure usage of attacker-controlled data
  • Prepared statements
    • Separated code/data
    • Increased performance (query-planner already optimized)
    • $prepared = $mysqli->prepare("INSERT INTO test(id) VALUES (?)");
    • $prepared->bind("i", $i) ("i" means integer)
    • $prepared->execute()
  • Sanitization/escaping
    • Caution: Error-prone
    • Escaping function: mysqli_real_escape_string()
  • Database permissions (protection)
• Example:
  • bob' AND password LIKE 'a%' #
  • bob' AND (SELECT IF(MID(password, 1, 1) = 'a', SLEEP(1), 0) FROM users WHERE user='bob')#

NoSQL Injection

• Not Only SQL
• Database types:
  • Document-based (MongoDB, CouchDB)
  • Key-value (Redis, BerkeleyDB)
  • Graph database (Neo4J)

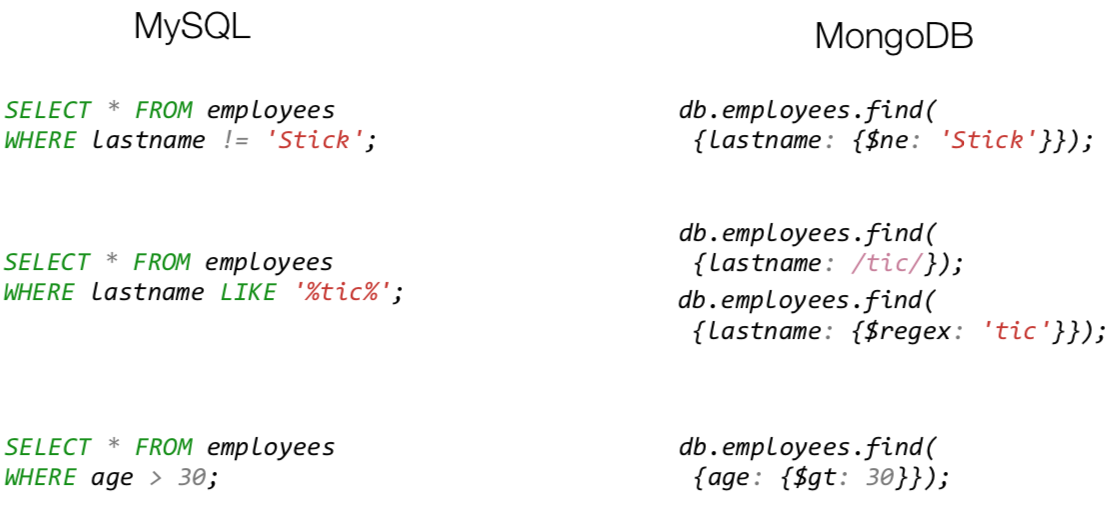

• Mostly custom query format
  • e.g., db.employees.find({lastname: "Stick"})
  • e.g., Negation: db.employees.find({name: {$ne: "Stick}})
  • e.g., Regex: db.employees.find({name: /tic/})
  • e.g., Greater: db.employees.find({age: {$gt: 30}})
• Note: Parsing GET parameters in PHP:
  • PHP takes last definition (e.g., GET)
  • ?foo[]=bla&foo[]=bar enforces array foo = [bar, bla]
• Attack: Inject conditions
  • Using the parsing behavior of PHP for HTTP parameters
  • e.g., ?user=bob&password[$regex]=.
• Defense:
  • Type enforcement (e.g., for a string)
    • PHP: (string) $_GET['name']
    • Python str(request.GET['name'])

Code Execution Flaws

Command Injection

• Scenario: App executes OS command directly with user input
• Known problem: Data and code not separated
• Example:
  • os.system("htpasswd -b .htpasswd %s %s" % (username, password))
• Attack: Inject malicious parameters into bash
  • cmd1; cmd2: Execute cmd1 and cmd2
  • cmd1 && cmd2: Execute cmd2 if cmd1 worked
  • cmd1 | cmd2: Pipe result of cmd1 into cmd2
  • cmd1 $(cmd2): cmd2 result to cmd1
• Problem: Command and arguments are not separated
• Solutions:
  • Separation of command and argument
    • Python: subprocess.call([...])
  • Escape shell arguments:
    • PHP: escapeshellarg(string $arg)

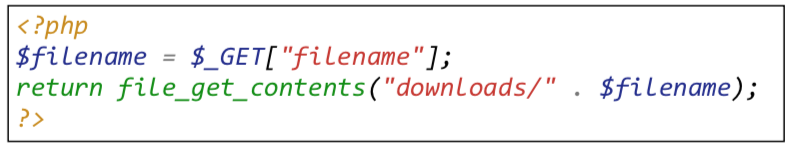

Path Traversal

• Scenario:
  • PHP script reads from storage with user input or copies a certain file
  • e.g., return read("downloads/" . $_GET['fn']);
  • e.g., move_uploaded_file(...)
• Use ../ to move on file system
• Attack:
  • Leak information (/etc/passwd, .htpasswd)
  • Overwrite information (e.g., PHP file)
• Preventions:
  • Sanitize path/input (focus on . and /)
  • Access rights

File Inclusion

• PHP Parsing:
  • PHP is HTML preprocessor
  • Execute code between <?php ... ?>
  • Include-statements:
    • include: Include, warning if not found
    • require: Include, die if not found
• Scenario:
  • Application code is split across multiple files
  • include call uses user input
  • e.g., include($_GET['page'])
• Attack:
  • Include other files on server
    • Denial of service: Include loop (include(index.php))
  • Code Injection: Include remote files (disabled by default)
• Prevention:
  • Use allow-list with allowed files
  • Sanitize path (e.g., basename() resolves traversals)
  • Restrict directories with open_basedir (all files outside this directory are inaccessible)
  • Use mapping from site ID to include file

Unrestricted File Upload

• Scenario: App allows file upload
• Attack: Upload file for remote code execution
• Types:
  • Upload HTML to be display with JavaScript (XSS by upload)
  • SVG images can contain JavaScript
  • PHP file being executed
  • Flash files
  • .htaccess: Overwrite webserver configuration (AddType adds executable to server)
• Real-life attack: GIFAR
  • Combination of GIF and JAR
  • GIF type information at beginning (bypass content sniff)
  • JAR information at the end (ignores first bytes)
  • Upload GIFAR to server and send link to uploaded file to user
• Prevention:
  • Type checking/Content sniffing (explicit or implicit)
  • Images: Remove non-image content/clear meta data (using libraries)
  • Separate domain for upload

Deserialization Issues

• Scenario:
  • Non-string data often exchanged between entities by using Serialization
  • e.g., pickle, serialize
• Property Oriented Programming (POP) attack
  • Idea: Chain together properties of different objects
  • Attacker controls properties of de-serialized object
  • Attacker chains together different magic functions
• Serialization in Python
  • pickle.loads() / pickle.dumps()
  • loads() calls __reduce__
  • Attack example:
    • Server calls pickle.loads() on Cookie value
    • Use pickled object with malicious __reduce__ function as Cookie value
    • Attacker sends malicious Cookie to server
    • e.g. class Foo: def __reduce__(self): subprocess.call()
• Countermeasures
  • Avoid serialization of complete objects
  • Serialize using JSON
  • Sign Cookies sent by the server (attack can not inject malicious code)
• Real-world attack: vBulletin 5.x
  • Attacker could pass code into eval()

Template Injection

• Template Systems:
  • Idea: Separate logic (controller) and rendering (view)
  • MVC architecture
  • PHP: Twig, Smarty
  • Python: Django/Jinja2
• Attack:
  • Template is combined with parameters, then rendered
  • Execute code on server side
    • Read/modify environment variables
  • Example:
    • $twig->render("Hello {first_name}", array('first_name' => ...));
    • first_name = lambda x: ...
• Prevention:
  • Prohibit user-provided input in generation of templates

XML (In)security

XML

• Well-structured markup language
• Consists of elements
• Elements may have attributes
• Validity by Document Type Definition (DTD)
  • DTD defines valid elements
    • <!ELEMENT img EMPTY>
    • <!ATTLIST img src  %URI; #REQUIRED>
  • Specifies elements
  • Defines custom entities
    • Entity: Mapping from element to value
    • Example:
      • <!ENTITY age "Alter">
      • Usage: %age;: 32 -> Alter: 32
• Document Type (<!DOCTYPE ...>)
  • Defined by DTD
  • Refers to DTD (can be external file)
  • e.g., <!DOCTYPE Name [ <!ELEMENT Name (#CDATA)> ]>
  • SYSTEM for external entities
    • Even within the entity definition
    • <!DOCTYPE Name SYSTEM "http://.../name.dtd">
    • <!ENTITY passwd SYSTEM "file:///etc/passwd">

Attacks

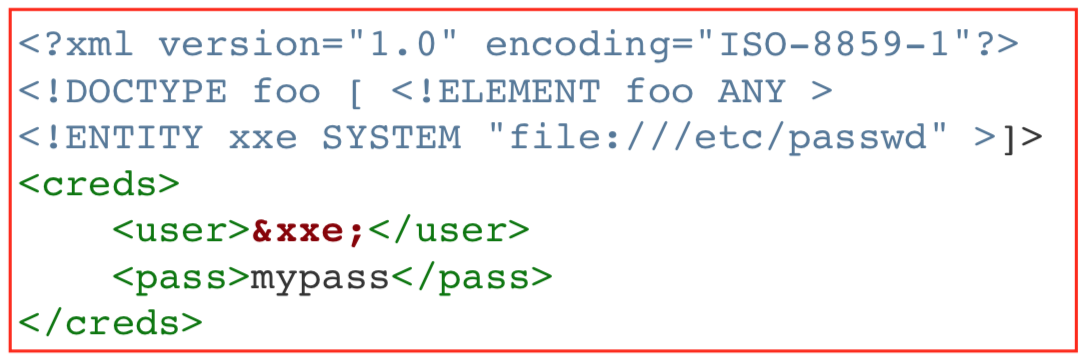

• Abusing XML External Entities (XXE)
  • Goal: Information disclosure (Confidentiality)
  • Attacker must control XML file (e.g., for login protocol)
  • Attacker includes sensitive files in SYSTEM
  • <!ENTITY xxe SYSTEM "file:///etc/passwd">
• Denial of Service (Availability)
  • Define entities recursively

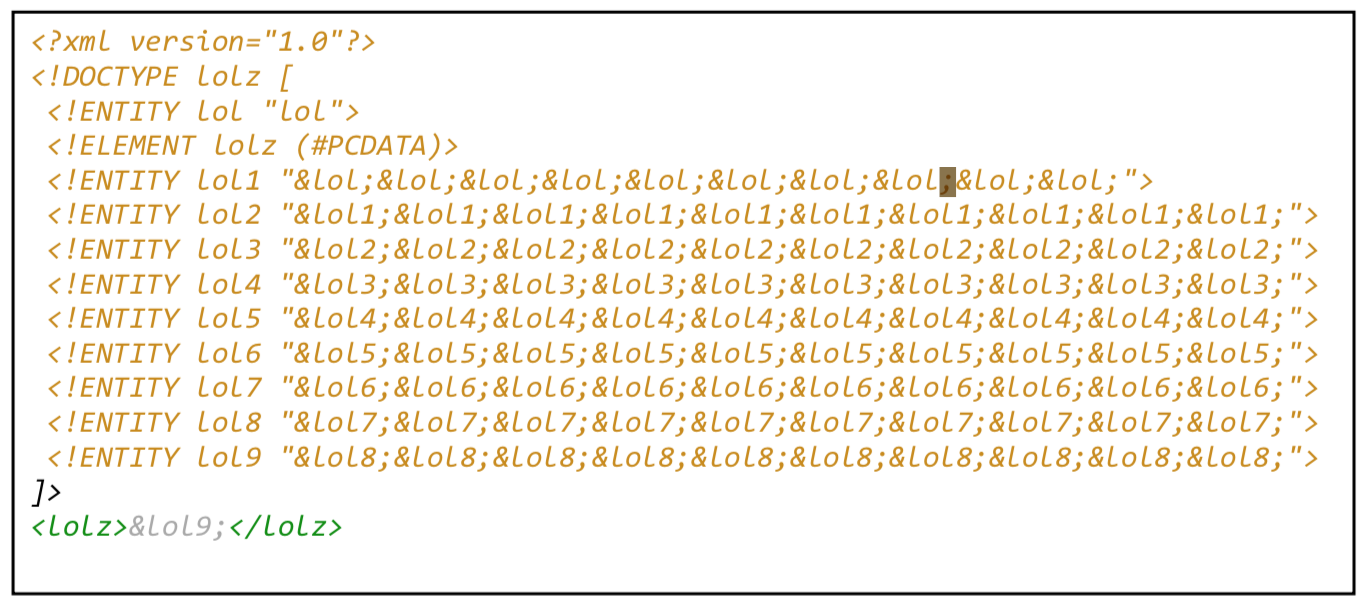

  • XML Billion Laughs

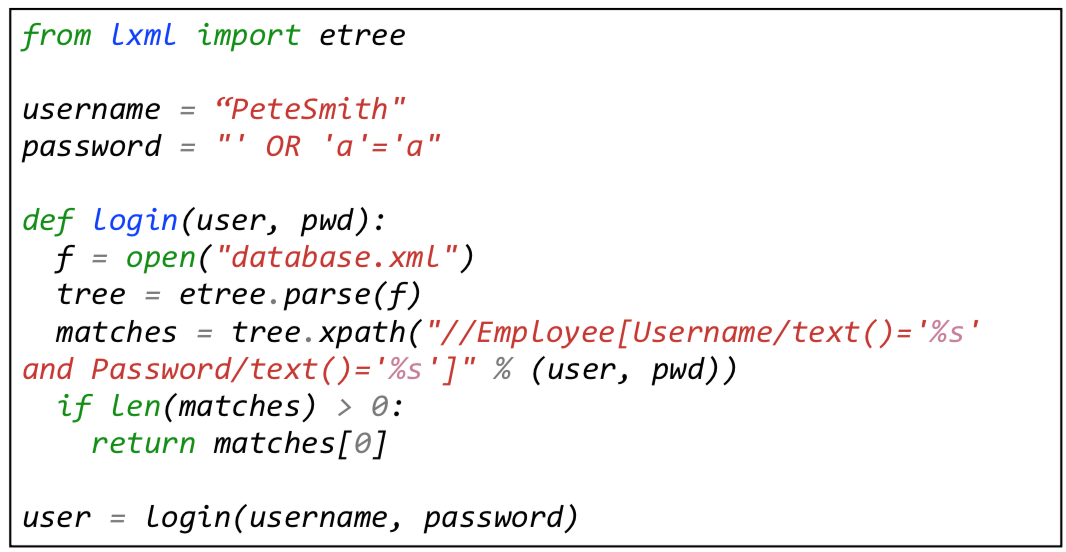

• XPath Injection
  • Scenario: Database is stored in XML
  • XPath Injection (attacker could inject XPath query)
  • Problem: Mixing code and data

Countermeasures

• Entity attacks:
  • Disable entity loader (libxml in PHP)
  • Python: etree, xmlrpc, minidom, defusedxml are safe
• Injection attacks:
  • Whitelisting of characters
  • Use programmatic checks

HTTP Parameter Pollution

• HTTP Parameters
  • Series of name=value
  • Separator: &
  • Escaping (percent-encoding):
    • & = ; / ? : # @ + $ ,
    • Hex-value of ASCII value
  • e.g., ?attr=123&foo=bar
• Attack: Multiple parameters with same same
• Problem:
  • Web server + application differ in interpretation of parameters
  • e.g., Result of ?a=1&a=2?
    • Keep first: a=1?
    • Keep last: a=2?
    • Array: a=[1, 2]?
    • Concatenation: a=12?
• Attacks
  • Problem: Multiple instances interpret the data
  • SQL Injection
  • XSS
  • ?page=SELECT 1,&page=2,3
• Real-world example: blogger.com
  • Attacker added herself in the author’s list
  • Author was checked on first parameter
  • Target block was checked on second parameter
• Countermeasure
  • Python: Double-check types of parameters (e.g., string vs. list)
  • General: Ensure proper encoding

HTTP Header Injection

• Attacker inserts headers into HTTP response
• Problem:
  • Headers are concatenated with user input
  • e.g., modify Cookies
  • Insert new headers by line break
  • Insert malicious content with line breaks
  • e.g., \nLocation: attacker.com\nFoo: bar
• HTTP Response Splitting:
  • Inject attacker-controlled response into the actual response (which is cut off)
  • e.g., \n\n<html><script>attack()</script></html>
• Countermeasure:
  • Ensure: No new line character allowed
  • PHP: Only one header per function call

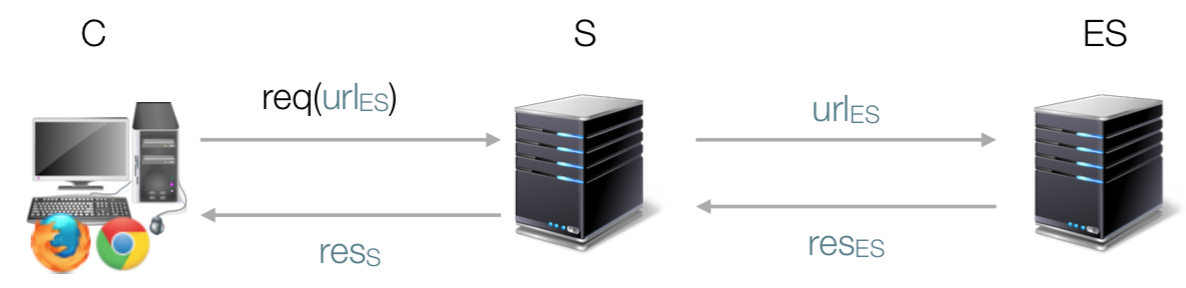

Server-Side Request Forgery (SSRF)

• Use Case:
  • Preview of resources ensuring privacy for the client
  • e.g., Twitter shows preview of images, does not deliver original URL to user
• Three parties:
  • Client (C)
  • Middle server (S)
  • External server (ES)
• Middle server (e.g., firewall, proxy) sends request to external server (target)
• Problems:
  • Attack external server anonymously (attacker’s identity is not revealed)
  • Access private resources behind a firewall (on the middle server)

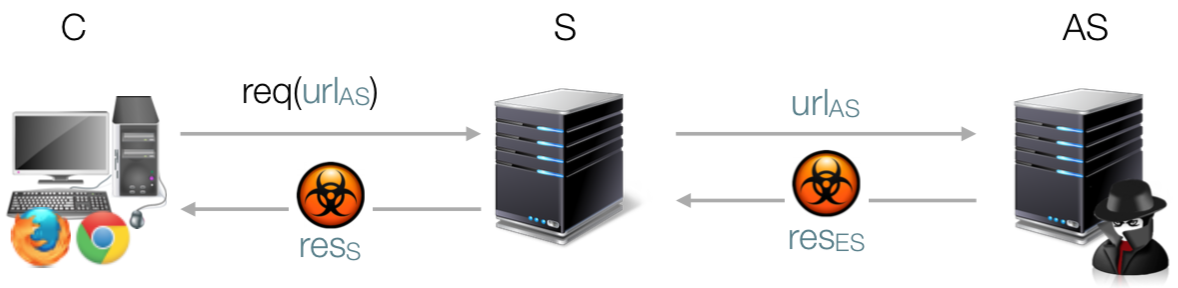

  • Deliver malicious content from the external server to client with the origin of the middle server
• Possible attacks:
  • Server-side Request Forgery:
    • Client wants to attack the external server which is behind a firewall
    • e.g., http://10.0.1.1:1234/...
    • Problem: URL parsing is not consistent
  • DNS Rebinding
    • Client attacks external server
    • Request (with IP) must be executed twice
    • First time: Check if hostname is allowed
    • Second time: Rebind DNS to target resource
    • Time-to-check-to-time-of-use attack
  • Web Origin Laundering (WOL)
    • Middle server is acting as proxy
    • Malicious content is sent from attacker server to client with the origin of the middle server
    • May bypass the CSP (if host names are used)
• Countermeasure:
  • Whitelist server
    • By the same component as taking the request
    • Due to different parsing rules
  • Content-Disposition: attachment, do not display file inline (mitigate WOL)
  • DNS pinning (against DNS rebinding)

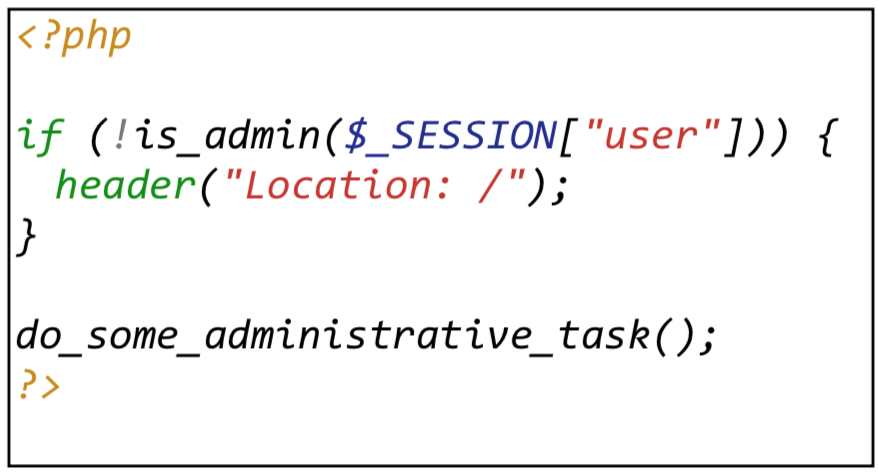

Execution after Redirect

• Problem: Bad programming
• Check permissions using PHP
  • If no permissions exist, set redirect header
  • Problem: Redirect only at end of script and not immediate (actions can be executed after setting the header)
• Finish script using die()
