Cross-Site Scripting¶

Basics¶

Attacker injects script into another site (cross-site)
- e.g., using HTML code containing JavaScript
- Goal: Usually, steal sensitive information of the user (attack confidentiality)
Script runs in origin of vulnerable site
- Confused-deputy attack (all privileges of the browser/origin)

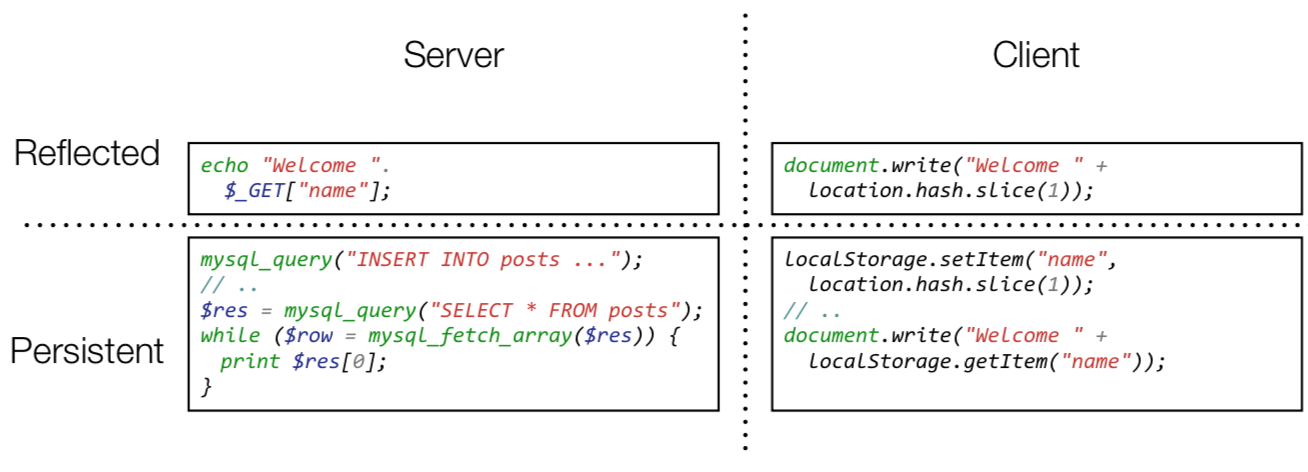

Dimensions:
- Persistence of injected code (reflected vs. persistent)
- Location of the vulnerable code (server vs. client)
Main problem:
- Data interpreted as code (basically for all injection attacks)
- Browser trusts the received code
- Main attack against websites
Countermeasure: Sanitization

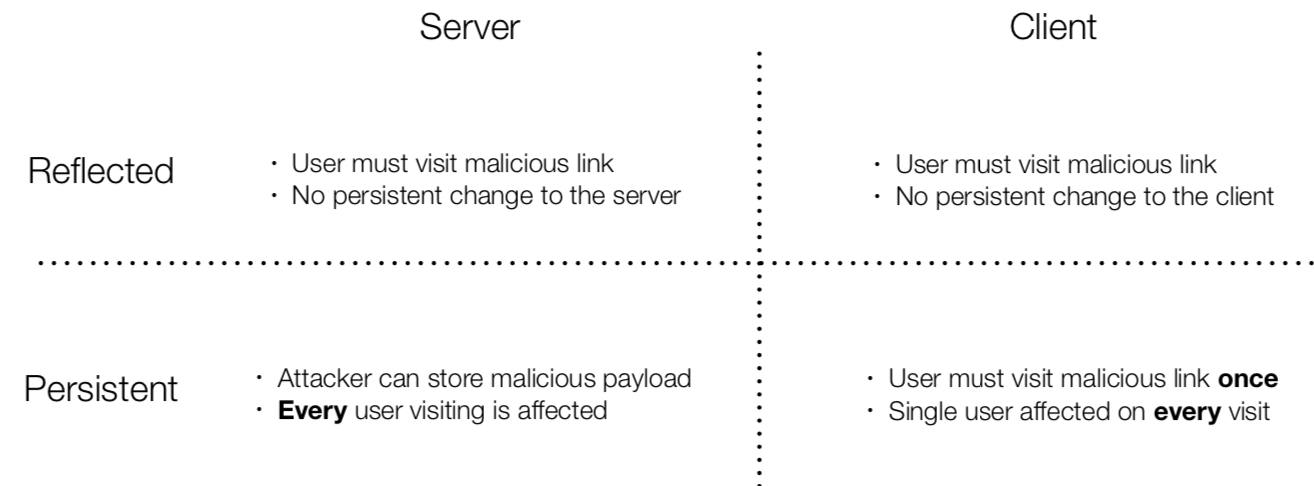

../_images/xss-dimensions.png ../_images/xss-consequence.png

1997: First attack found (by IAS)
- XSS was not discovered
1999: Discovered (Reflected SSXSS in 404 Pages)
2005: Name proposed
- Initially, DOM-based XSS
- Nowadays called Client-side cross-site scripting
2005: MySpace Worm (SS P XSS)
- Attack: Inject HTML in profile page
- Payload added Samy Kamkar as friend
- Injected code for friends
2013: Ubuntu Forums (SS P XSS)
- Vulnerability in vBulletin software
- XSS in announcements (sent link to admins)
- Attacker stole cookies
2014: Password managers
- Browsers auto-fill forms
- Attack: Fill form, wait for browser to fill

Capabilities of JS in its context (powerful):
- Full control over DOM
- Full access to browser state (e.g., cookies, storage, …)
- Read/write HTTP requests within the SOP
JS can pretend to be the
- User towards server (e.g., post content)
- Server towards user (e.g., modify page behavior)
Possible attack: Session Hijacking
- Also called Session ID Theft
- Goal: Steal session cookie of the user
- XSS can be used to perform a session hijacking attack
- Mitigation: Use HTTPOnly cookies

Primary methods for script injections
- Inline scripts
- External scripts (e.g., attacker controls CDN)
- eval(attackerinput)
Examples:
- Tag injection
  - <b>$var</b>
  - $var = '<script>...</script>'
- Break out of attributes
  - <img src="$var" />
  - $var = 'foo.jpg" onerror="javascript:alert(1)'
- Javascript URLs
  - <iframe src="$var" />
  - $var = 'javascript:alert(1)'
- In-script injection
  - <script>var a = $var<script/>
  - $var = '0; evil();'
  - <script>var a = 0; evil();<script/>

Attack:
- User visits malicious link (containing an attack)
- Server insert GET-Parameter into page
- No persistent change on server side
Workflow:
1. Attacker finds vulnerability (i.e., probe request parameters)
2. Attacker creates malicious payload (e.g., steal cookie)
3. Attacker tricks user into visiting link
  - Email with link
  - iframe on his page to vulnerable site
4. Attack code is reflected from server and sent to the victim
Common errors:
- Insert GET-parameter into HTML
  - e.g., search fields
  - echo '<input type="text" value="'.$_GET["query"].'">';
- Insert request URI into HTML
  - e.g., custom error page
  - echo 'The URL '.$_SERVER['REQUEST_URI'].' could not be found';

Attack:
- Attacker stores malicious payload at vulnerable server site
- Payload printed on website (e.g., SQL written to page, every user is affected)
Workflow
1. Attacker finds vulnerability (e.g., inject HTML or JS code into request parameters, then test it)
2. Web server inserts malicious payload into database
3. Every user is attacked
  - e.g., guestbook, forums, profile page, book descriptions on Amazon
Countermeasures:
- Input validation/sanitization
  - e.g., allow-list of characters (very hard to be correct)
  - Simple replacement does not suffice
- Encode/escape output
  - PHP htmlentities(str)
    - Encode characters to HTML entities
    - Does not encode single quot
  - HTML parser decodes HTML entities
- SQL Prepared Statements
- Avoid creating own filters (frameworks have context-aware filters, read manual)
- Prohibit user-provided markup (e.g. use Markdown, BBCode, etc.)
- Disable error reporting to Web frontend

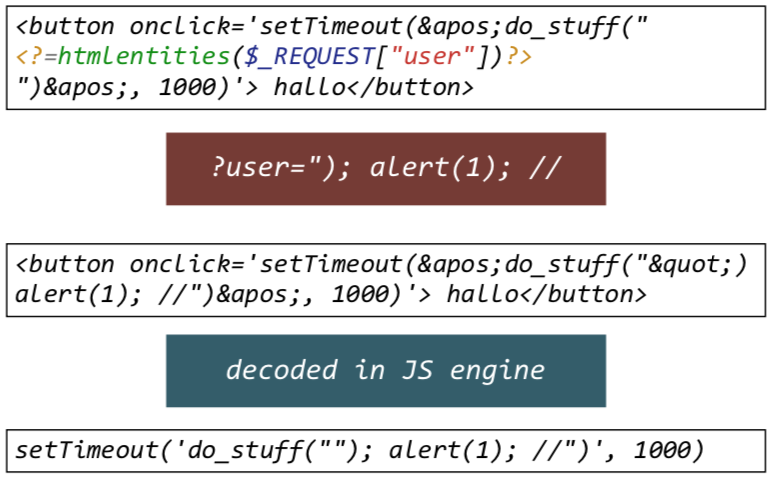

../_images/xss-encoding.png

Insecure APIs:
- Write new tags:
  - document.write(...)
  - document.writeln(...)
- Execute JavaScript:
  - eval(...)
  - setTimeout(...)
  - setInterval(...)
- Add event handlers:
  - .innerHTML
  - .outerHTML
  - innerHTML/outerHTML does not execute scripts
  - Event handlers are executed (e.g., <img onerror="..."/>
Attacker-controllable sources:
- URL
- Referrer
- Cookies
- window.name (site could call window.name)
- postMessage
Causes for Client-side XSS (study, CSS15):
- 65 % first-party code
- 21 % third-party code (Problem: Code is transferred to including domain)
- 14 % combination of both
Prevention:
- Do not use insecure APIs
- Do not use user-provided input directly
- Do not allow tainted code in JavaScript
- Policy:
  - Never interpret data as code
  - Only use data as literals
  - Use existing APIs (e.g., JSON.parse)

Attack:
- User visits malicious link (i.e., using fragment identifier)
- No persistent change on client-side
Important: No attacker data is sent to server
Workflow:
1. Attacker analyzes JavaScript code for vulnerabilities
  - e.g., unfiltered data in URL
2. Attacker tricks victim into visiting the page with vulnerable JavaScript via link
3. Victim’s browser executes JS code
Countermeasures:
- If fragment identifier used, check using regex

Problem:
- Static analysis fails when eval is used
- Prototype chaining difficult to analyze
Abstraction:
- XSS is insecure data flow from attacker-controllable sources to security-critical sinks/APIs
Solution: Dynamic analysis (i.e., taint checking)
Taint checking
- Type of dynamic analysis (i.e., monitor information flow)
- Goal: Derive where security-critical variables are used (low-security input)
- Variable is tainted and then tracked
- Variables which are set by a tainted variable are tainted as well
Contexts for XSS:
- HTML context: Requires script tag
- JS context: Requires JS statements
- URL context: Requires javascript: URL
Steps of an attack:
- Break-out:
  - Leave context (e.g., ";})
  - Depends on context (HTML elements, script-tag, URL)
- Exploit:
  - Perform exploitation
  - Independent of context
- Break-in:
  - Re-enter context (e.g., close brackets, comment rest of JS //)
  - Depends on context

Attack:
- User visits malicious link once (e.g., write to WebStorage/cookie)
- Causes persistent change on client-side / user is affected on every visit (e.g., read from WebStorage)
Workflow:
1. Attacker analyzes JavaScript code for vulnerabilities
  - URL flowing into persistent storage (e.g., WebStorage, Cookies)
  - Execution of persistent storage (e.g., Cookie used in eval-statement)
2. Attacker tricks victim into visiting page (e.g., with fragment, data is stored)
3. On each page visit, the victim’s browser executes the malicious JS

Approaches
- Internet explorer (Built-in XSS filters)
- Firefox Extension NoScript (too many false positives)
- Chrome XSSAuditor

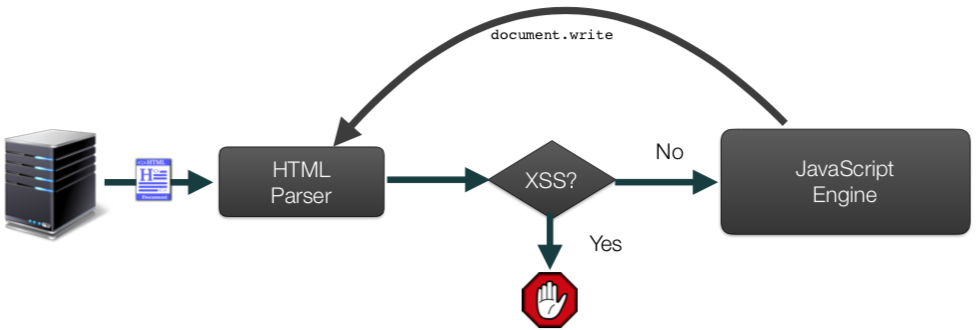

Chrome XSSAuditor
- State-of-the-art
- Low performance overhead
- Reasonable false negatives
- Audits document.write
- Ignores innerHTML for performance reasons
Mutation-based XSS
- Stackoverflow
- Browsers aim for compatibility: HTML is corrected by browser
- Browser changes HTML and bypasses XSS sanitizers

../_images/xss-chrome.png
