Policies

Same-Origin Policy

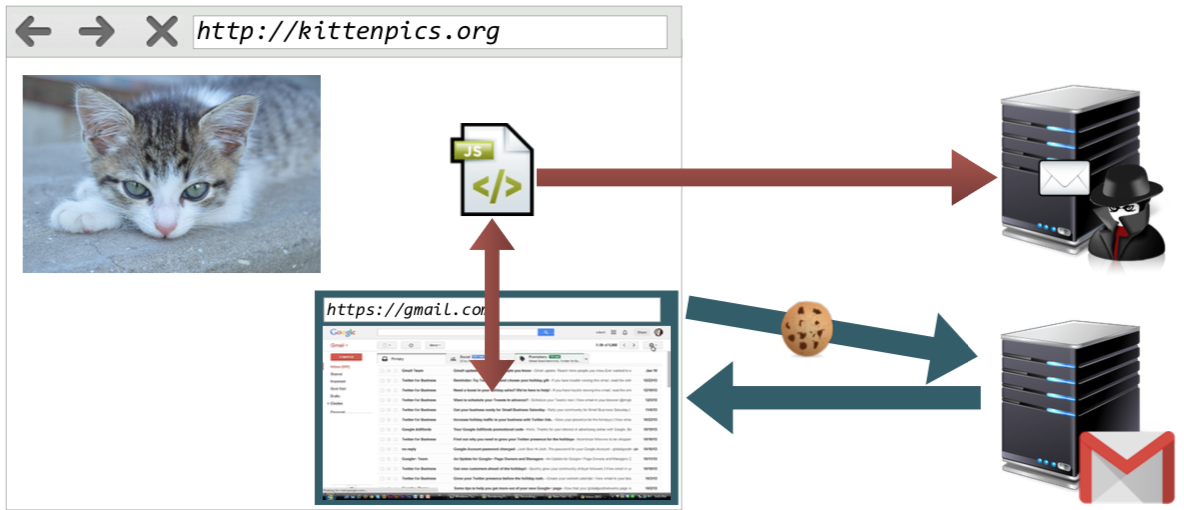

  • Problem:
    • Without separation, scripts could leak information from frames
    • e.g., malicious site includes Gmail-iframe, logged-in due to cookies, malicious site read iframe content (e.g., mails)
  • Idea:
    • Restrict interaction between documents/scripts from two different origins (e.g., usually scripts and CSS)
  • SOP is Access Control Policy
    • Origins must match to get access
    • Origin: Protocol, Hostname, Port
    • IE: No explicit port => Match for all ports
  • Important:
    • ~~Only applies to scripts/CSS~~
    • Resources like images, css files, dynamically loaded scripts, video, audio can be requested via the HTML tags
    • Cross-origin writes are allowed (links, redirects, forms)
  • Access:
    • Cross-origin write (outgoing) allowed (e.g., form submissions, redirect to another page)
    • Cross-origin embedding allowed (e.g., images, styles, scripts, video, …)
    • Cross-origin read (incoming) disallowed (often leaked through embedding)

../_images/before-sop.png

Use Cases

  1. Control (script) access to other documents in browser (frames, iframes, popups)
    • Exception: window.name is always accessible (can be used for cross-site scripting)
  2. Control (script) access to local state (cookies/Web Storage)
  3. Control HTTP requests to other hosts (e.g., XMLHttpRequest)

Domain Relaxation

  • Problem: SOP too restrictive (for big websites)
  • Goal: Two domains should communicate under certain conditions

document.domain

  • document.domain can be set
  • Set to super-domain (suffix containing parent domain)
  • e.g., test.example.org to example.org
  • Both domains have same document.domain value
  • Both domains must explicitly set document.domain (both must agree to communicate)
  • Exception: Setting to TLD is forbidden (e.g., .org)

Web Messaging

  • HTML5 API
  • Purpose:
    • Communication channel between two sites
    • Preserve authenticity/confidentiality of message
  • Workflow:
    • Sender script calls window object of receiver with window.postMessage(msg, targetOrigin)
    • Receiver script must initialize an event listener
      • addEventListener("message", func)
      • Event: {data, origin, source}
        • origin of sender
        • source is window object of sender
    • Sender script could initialize an event listener for bi-directional communication
  • Security issue:
    1. Always provide targetOrigin and not the wildcard (otherwise, all scripts would receive the message)
    2. Always check message origin at receiver site (otherwise, all sites could send messages)
    3. Always evaluate message content
    4. Avoid Regex checks or substring checks
  • Real-world usage:
    • CISPA, 2017
    • ~50 % use postMessage with Wildcard target (2016)

Attacks

DNS Rebinding

  • Attacker goal: Access to network behind firewall
  • Idea:
    • SOP relies on hostnames
    • Change underlying IP address of hostname
    • Abuse Time-to-live of DNS records
  • Preliminaries
    • Attacker controls DNS server
    • Attacker controls Webserver (including malicious script)
  • Real-world attacks:
    • CUPS printing system (log files)
    • Router access (configuration)
Workflow
  1. Victim asks for IP address for DNS attacker.com
  2. Attacker sends IP of Webserver with low TTL (e.g., TTL=1)
  3. Attacker sends website including malicious script to victim
  4. Victim’s browser executes script, script connects to attacker.com
  5. IP for DNS attacker.com is expired, victim asks again for IP address
  6. Attacker sends IP address of target (e.g., router 10.0.1.1)
  7. Script connects to router (browser still communicates with the same origin, but different IPs)
History
  • 1996 Princeton Attack
  • 2002 Adam Megacz
    • Using old domain relaxation rules
  • 2006 Martin Johns
    • IE/Firefox dropped pinned ID when connection failed
    • Attack: Connect to closed port on attacker.org
  • 2006 Kanatoko
  • 2013 Johns et al.
    • HTML5 AppCache
  • 2016/2017
    • Browser has finite DNS cache
    • Idea: Flood DNS cache with for-loop
Approach HTML5 AppCache
  • Johns et al., 2013
  • HTML5 AppCache
    • Cache manifest instructs browser to store certain files offline
    • If offline content is loaded and the browser is online, browser checks for changes
  • Idea:
    • att1.org hosts cache manifest
    • att2.org contains resources (gets rebound later)
  • Workflow:
    1. Victim queries att1.org
    2. Attacker sends cache manifest to victim (manifest contains link to Flash file on att2.org)
    3. Victim queries Cache manifest
    4. Attacker sends malicious code to victim
    5. Victim’s browser caches the Flash file
    6. Attacker sends website (embedding the cached code)
    7. Code gets executed, asking for new IP
    8. Attacker sends IP of router
Countermeasures
  • IP address pinning (minimum TTL)
  • Attacked web server checks Host HTTP Request Header (mismatch after the rebinding)
  • Extended Same-Origin Policy
    • Problem: Browser decides (with potentially bad information, e.g., IP addresses)
    • Idea: Server sets its trust-boundary
    • Server sends list of allowed origins
    • Client checks if target origin is in the list of the server-provided origins
    • Criterion does not hold for DNS Rebinding attacks

Cross-Origin Search Attack

  • Attacker’s goal: Leak sensitive information from server (answer specific query)
  • Side-channel attack
  • Scenario:
    • Victim is authenticated at target website
    • Victim accesses attackers website
    • Malicious script loads target website (but can’t access it due to SOP)
    • Idea: Measure time of request
  • Example query: Does user Alice have email from user Bob?
  • Workflow:
    • Attacker sends malicious script to user
    • Script sends two requests:
      • Challenge: One where an answer is expected
      • Dummy: Other where no answer is expected
    • Real answer is bigger and has higher latency
    • If latency difference is significant, question can be answered with yes
    • Use statistical significance test

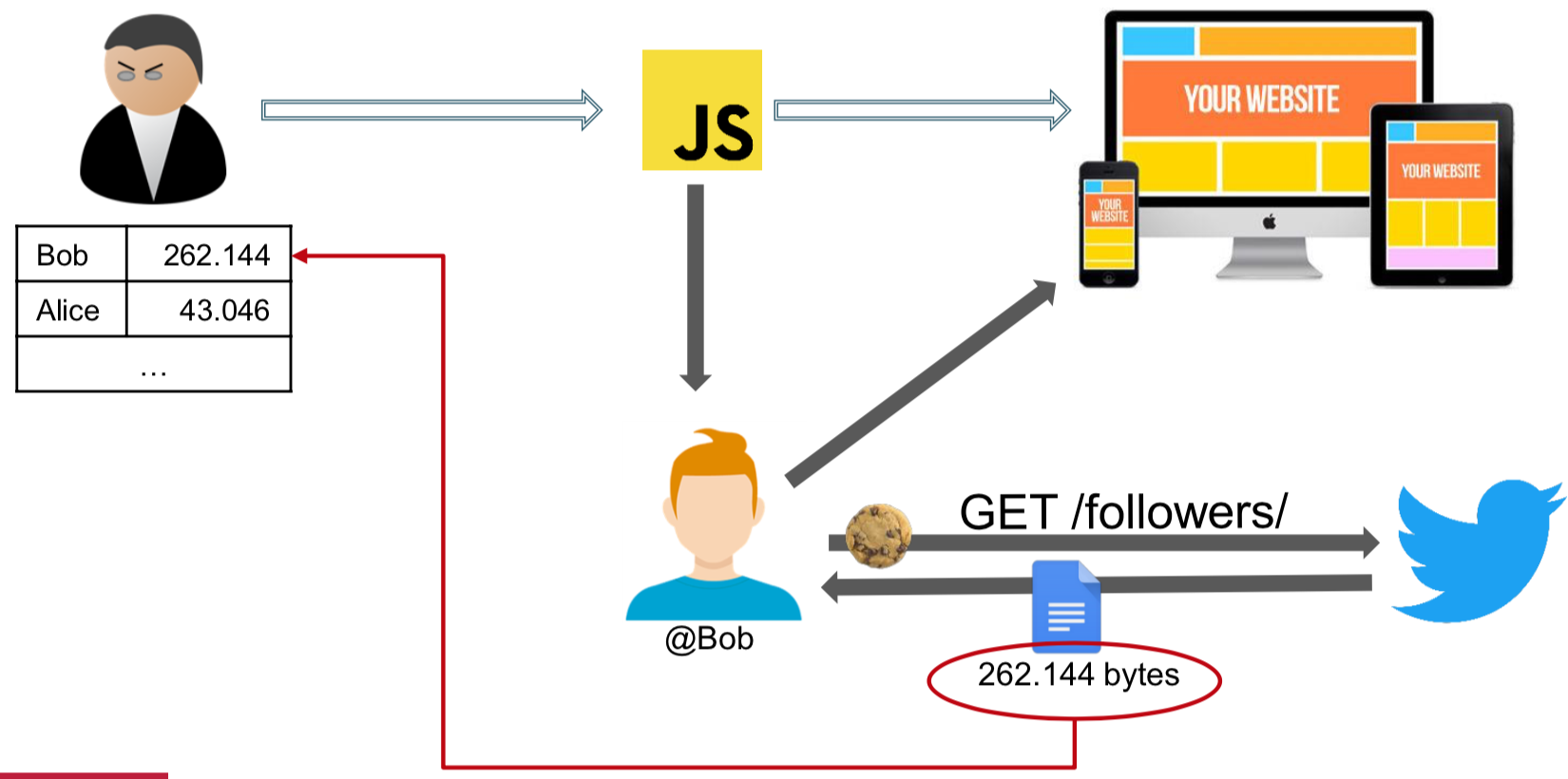

Cross-Origin Resource Size Attack

  • Goal: Identify users (attack anonymity/confidentiality)
  • Side-channel attack
  • Idea:
    • Use sizes of dynamically generated resources to identify users
    • e.g., identify Alice by measuring the resource size of her Twitter followers
    • Let malicious script load Twitter followers of unknown user (compare resource sizes)
  • Measuring size unknown resource
    • Measure size of AppCache
    • Instruct browser to cache the resource
    • Measure size of AppCache again
    • Result size is the different if the two measurements
  • Attack workflow:
    • Victim visits attacker’s website with malicious script
    • Script measures current cache size (\( n \))
    • Script loads an (approximately) unique site for a user into the cache
    • Script determines resource size and tells attacker
    • Later, anonymous visits attackers page and the process repeats
    • The attacker can identify the unknown user by matching the resource sizes
  • Defense:
    • SameSite-Directive for Cookies (prevent sending of Cookies)
    • Add padding for entires (do not measure exact resource size)

../_images/coresourcesize.png

Pixel Perfect Timing Attack

  • Goal: Identify users (attack anonymity/confidentiality)
  • Part of family of Canvas Fingerprinting
  • Side-channel attack
  • Each browser renders text/images differently fast (using CSS filter effects)
  • Exploit timing behavior of browser (using requestAnimationFrame())
  • Can be used to generate fingerprints for users
  • Paper: Paul Stone

Cross-Origin Resource Sharing (CORS)

  • Problem:
    • SOP too restrictive for cross-domain communication
    • No really good solution exists
  • Goal: Enable fine-grained access
    • Server tells browser from which origins requests are allowed

../_images/cors.svg

Request From Client

  • Send own origin via Origin header (not complete URL)
  • Simple request:
    • Standard methods: GET, HEAD, POST
    • Standard headers (e.g., Accept, Content-Type, Content-Language, …)
    • Standard content-types (e.g., multipart/form-data, text/plain, application/x-www-form-urlencoded)
  • Complex request:
    • Requires Preflight request
    • Non-standard methods (others than above)
    • Non-standard headers (e.g., authentication, X-CSRF)
    • Non-standard content-types (others than above)
  • Preflight request
    • Before sending the actual request, ask target server for policy
    • HTTP-Method: OPTIONS
    • Headers:
      • Access-Control-Request-Method: <method>
      • Access-Control-Request-Headers: <headers>

Response From Server

  • Sends policy with headers
  • Headers
    • Access-Control-Allow-Origin
      • Possible values: <origin> or *
      • * can’t be used with credentials in request
      • Lists origin which can access
    • Access-Control-Expose-Headers
      • Which headers my be accessed by (exposed to) JavaScript
      • Always allowed:
        • Cache-Control
        • Content-Language
        • Content-Length
        • Content-Type
        • Expires
        • Last-Modified
        • Pragma
    • Access-Control-Max-Age
      • Cache lifetime of preflight requests
      • Value: Integer (seconds)
    • Access-Control-Allow-Credendials
      • Value: true/false
      • Credentials: Cookies, authorization headers, certificates
    • Access-Control-Allow-Methods
      • List, comma-separated
      • Allowed HTTP methods
    • Access-Control-Allow-Headers
      • List, comma-separated
      • Allowed HTTP headers (sent by client)

Vulnerability

If the server automatically adds the origin of every request to the allowed origins and sets credentials on true, the policy is useless.

Content Security Policy (CSP)

Basics

  • Goal:
    • Mitigation against XSS/data leakage
    • Reduce attack surface
  • Idea:
    • Server sends policy of resource origins and script execution (e.g., designed by developer)
    • Browser must enforce the policy
    • Ensure, that attacker-controlled code can’t be executed directly
  • Opportunities:
    • Developer can explicitly whitelist trusted resources
    • Developer can disallow inline scripts
    • Developer can disallow dangerous JavaScript constructs (e.g., eval, event handlers)
  • Realization:
    • Policy set in HTTP Content-Security-Policy header
    • Policy in meta-tag (allows only a subset of directives)
  • Important:
    • Can’t stop XSS, reduces impact
    • Does not prevent HTML injection (e.g., Website defacement)
  • Definition parser-inserted code:
    • Use of eval(code)
    • Use of document.write(code)
    • Non-parser-inserted code: document.appendChild/createElement
  • Problem: Libraries and Frameworks bypass CSP
    • Libraries (e.g., Bootstrap) use annotations
      • e.g., data-text attribute of button is inserted
      • Problem: With script-dynamic, a script is trusted and the attacker could inject malicious script with data-text="<script>...</script>"
    • jQuery uses eval() to evaluate the content of an inline-script
  • Statistics:
    • 2016: 94 % of websites have a trivially bypassable CSP

Policy

  • Sent by Server:
    • Content-Security-Policy: policy
  • Policy is a string containing several directives
    • Fetch directive
      • Control location for certain resource types
    • Document directive
      • Control document properties
    • Navigation directive
      • Control locations a user can navigate to, e.g., form submission
    • Reporting directive
      • Control reporting process

Levels

Level 1

Fetch Directives
  • Directives
    • default-src: Default fallback source
    • script-src Script origin
    • style-src Style origin
    • img-src: Image origin
    • font-src: Font origin
    • object-src: Object origin
    • connect-src: Control valid XMLHttpRequest targets
    • frame-src: Control origin of frames
  • Possible values:
    • <host-source>: Name, IP address or *
    • 'self': Refer to origin from which the document (Web page) is loaded
    • 'none': Refer to empty set, no URLs match
    • 'unsafe-inline': Allow usage of inline scripts, JS URLs, inline styles, inline event handlers
    • 'unsafe-eval': Allow usage of eval()
Report Only Mode
  • Problem:
    • CSP tedious to write
    • Restrictive policy might break functionality (e.g., third-party provider)
  • Idea: Add feedback for developers (browser reports violations to server)
  • Report Directive: report-uri <URI> (later renamed)
  • Does not work in meta element

Level 2

  • Fetch Directives:
    • Added child-src:
      • Control worker- and nested-browsing-source
      • Deprecates frame-src (later un-deprecated)
  • Document Directives:
    • Added base-uri <source>:
      • Allowed values for <base>-tag
    • Added sandbox (see Client-Side Security -> Sandbox)
  • Navigation Directives:
    • Added frame-ancestors: Which sites may frame this site (does not fall back to default-src)
    • Added form-action: Control form targets (does not fall back to default-src)
  • Allow-listing of resources (new values):
    • Using hashes:
      • Add hash for script-tag to verify integrity
      • Hash contained in CSP
      • CSP: script-src 'sha256-xxxx'
      • <hash-algo>-<hash> (e.g., sha256-xxxx)
    • Using nonces:
      • Nonce contained in CSP
      • Nonce must be added to script tag
        • CSP: script-src 'nonce-xxxx'
        • <script nonce="xxxx">...</script>
      • If a nonce is specified, modern browsers ignore the unsafe-inline directive (i.e., if one nonce is used all inline scripts must use a nonce)

Level 3

  • Fetch directives:
    • Added worker-src (control workers)
    • Added manifest-src: control AppCache manifest source
    • Un-deprecated frame-src
  • Report directive:
    • report-to (replace report-uri)
  • New value strict-dynamic:
    • Allow adding scripts dynamically
      • Trust a root script (must be specified by a nonce or a hash)
      • Browser ignores the host-based allow-listing
    • Trust is propagated (scripts loaded by this script are trusted)
    • Disallow parser-inserted code (i.e., eval, document.write)
    • e.g., script may use appendChild but not document.write

Example

Content-Security-Policy: default-src 'self'; img-src *; media-src media1.com media2.com; script-src userscripts.example.com

<meta http-equiv="Content-Security-Policy" content="default-src 'self'; img-src https://*; child-src 'none';">
