Caching

  • Goals:
    • Web resources should be provided by a service
    • Client should be able to update resource
    • Access time should be small
    • Scalability should be given
  • Cache:
    • A cache is a component which stores data transparently so that recurring requests have a faster response time
  • Possible caching locations:
    • Database (cache query results)
    • Client-side (Browser)
    • Server-side
    • Intermediate (CDN, proxies)

Client-side (Browser)

  • Server can send HTTP headers with caching directives for certain resources
  • Scenario: Resources are equal
  • Headers:
    • Cache-Control
    • ETag
    • Last-Modified
    • If-None-Match
    • If-Modified-Since

Header Cache-Control

  • Several options may be combined
  • no-store:
    • Addresses the client and intermediate proxies
    • Do not store data
    • If copies exist, delete them
    • Note: Browsers may keep file anyway to support a history navigation
    • Use case: Annotate sensitive files (e.g., security relevant)
  • no-cache:
    • Addresses the browser and intermediate proxies
    • Check, if the resource is up-to-date before delivering it
    • i.e., force the caching component to validate the resource
  • private:
    • Browser: Caching is allowed (but not required)
    • Proxies: Do not cache
  • public:
    • Everybody may cache the response
  • max-age=<seconds>:
    • Specify the time (in seconds) for which the resource is considered as up-to-date
    • Time is relative to request time (in contrast to expires)
  • must-revalidate
    • Cache component must check state of resource before delivering it
    • Do not use expired resources
    • ==Differente to no-cache?==
  • Example:
    • Prohibit caching:
      • Cache-control: no-cache, no-store, must-revalidate
    • Cache static assets:
      • Cache-control: public, max-age=31536000

Header ETag

  • Purpose:
    • Provide an unique identifier for a version of a resource
  • Response header
  • ETag is delivered with the resource
  • Each new version gets a new E-Tag
  • e.g., ETag: "<etag_value>"

Header If-None-Match

  • Purpose:
    • Server checks if the resource is up-to-date
    • Only deliver the resource if it changed
  • Request header (usually, GET or HEAD)
  • Values:
    • If-None-Match: "<etag_value>"
    • If-None-Match: "<etag_value>", "<etag_value>", ...
    • If-None-Match: *
  • Behavior:
    • Server sends the resource if and only if the ETag of the resource is not contained in the list of ETags from the header
    • Otherwise:
      • GET/HEAD: return 304 Not Modified
      • POST/PUT: return 412 Precondition Failed
  • Opposite header: If-Match
  • Similar headers:
    • If-Modified-Since
    • Last-Modified

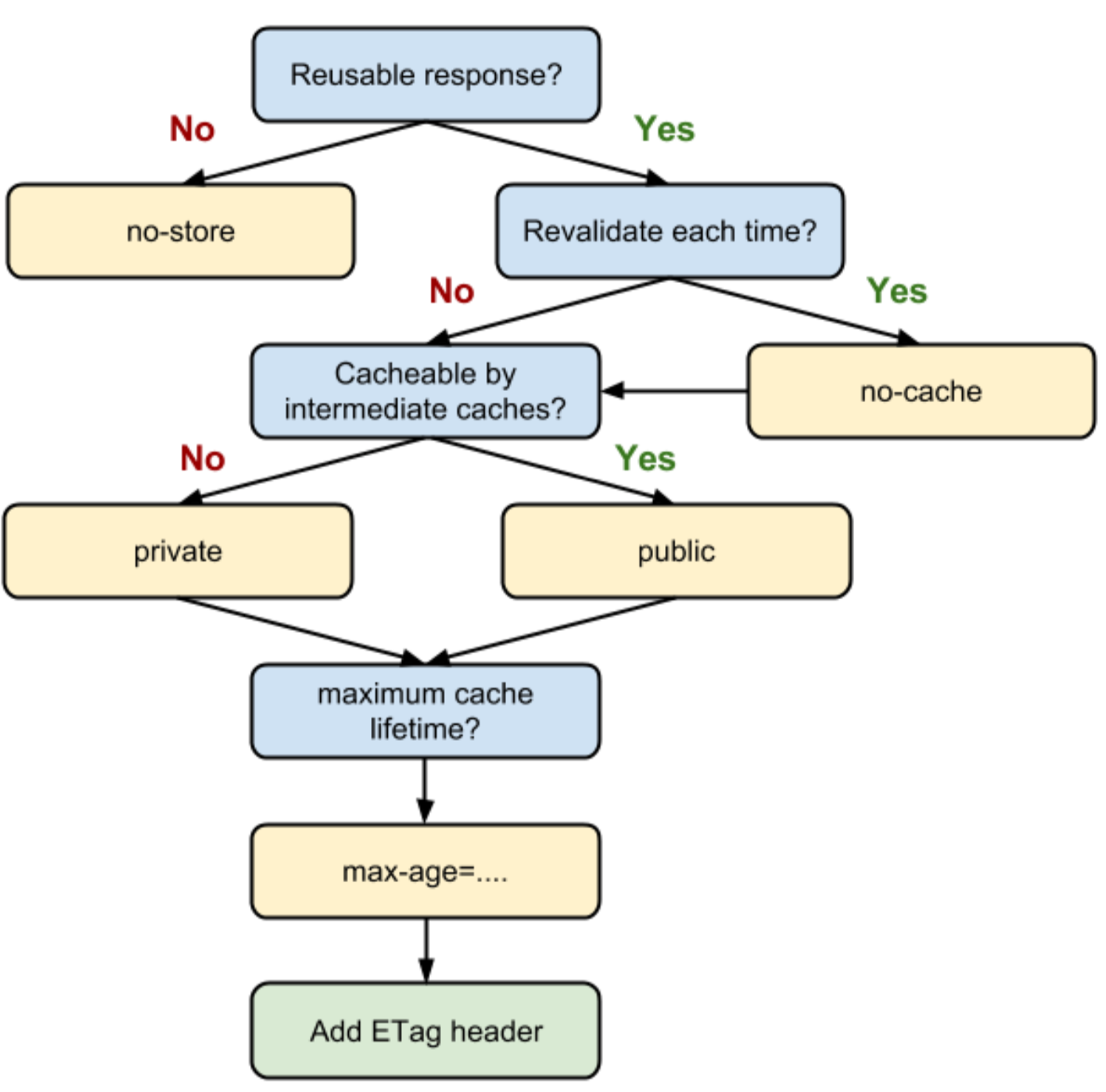

../_images/10-client.png.

Server-side

  • Scenario: HTTP responses are similar/modified rarely
    • View elements
      • e.g., Header, Footer, Sidebar, Lists
    • Rarely modified Data objects
      • e.g., Access rights, configuration parameters, product data
    • Expensive/large data
      • e.g., contact lists, diffs on GitHub
  • Access Time:
    • Main memory (RAM, \( 100 \mu s \))
    • Local filesystem
      • SSD \( 100 \mu s \)
      • HDD \( 1000 \mu s \))
    • Remove server (additional \( 100 \mu s \))
    • Rule of thumb: RAM > SSD > Remote server
  • Hit rate:
    • RAM: Only processes of the application can access data
    • SSD: All processes of server can access data
    • Remote: All nodes of the cluster can access data
  • Important: Trade-off between Access time and Hit rate
  • Example: Memcached
    • Memcached is a cache program
    • i.e., it manages data in the RAM
    • Features:
      • TCP interface
      • Distributed
      • Key-value store
    • Key size: 250 Byte
    • Value size: 1 MB
    • Strategy: Least Recently Used (LRU)
    • Access time in \( O(1) \)

Content Delivery Network

  • Motivation:
    • A single host providing popular data has problems:
      • Scalability
      • Reliability
      • Performance
    • Problem: Instant popularity of a resource (so-called flash crowd)
  • Idea:
    • Use servers which are close to the user to distribute static content
    • i.e., at the edge of the network
  • Goals:
    • Reduce the number of accesses to the primary server
    • Increase the response time for the users
  • e.g., cache images, videos, CSS (static files)

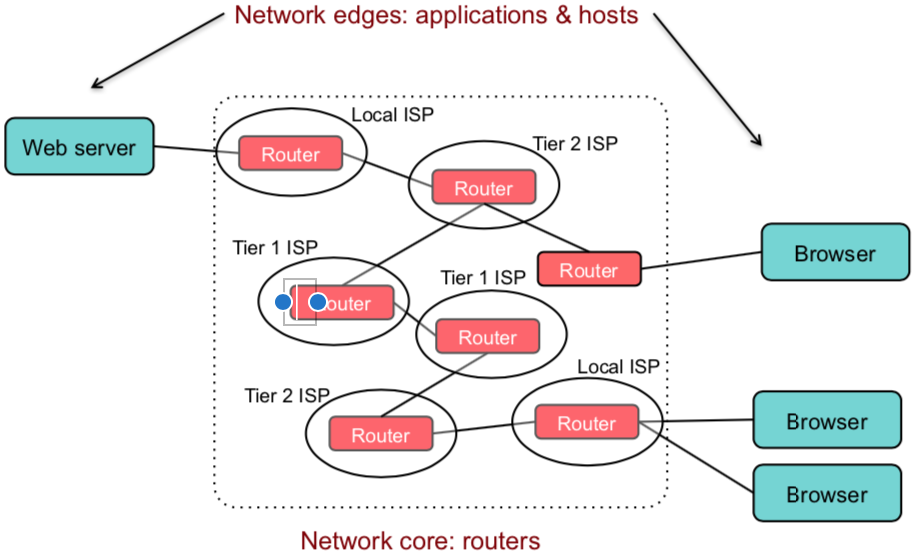

../_images/11-setting.png

Approaches

No CDN

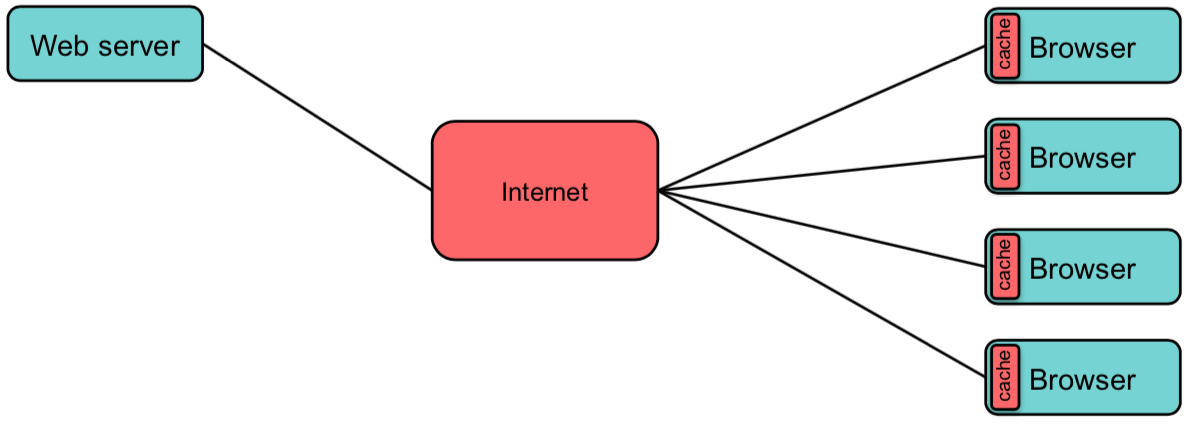

../_images/10-no-cdn.png

Proxy Server

  • Caching on client-side
  • e.g., cache server per institution
  • Disadvantage:
    • Cache control is outside of provider (may affect hit rate)

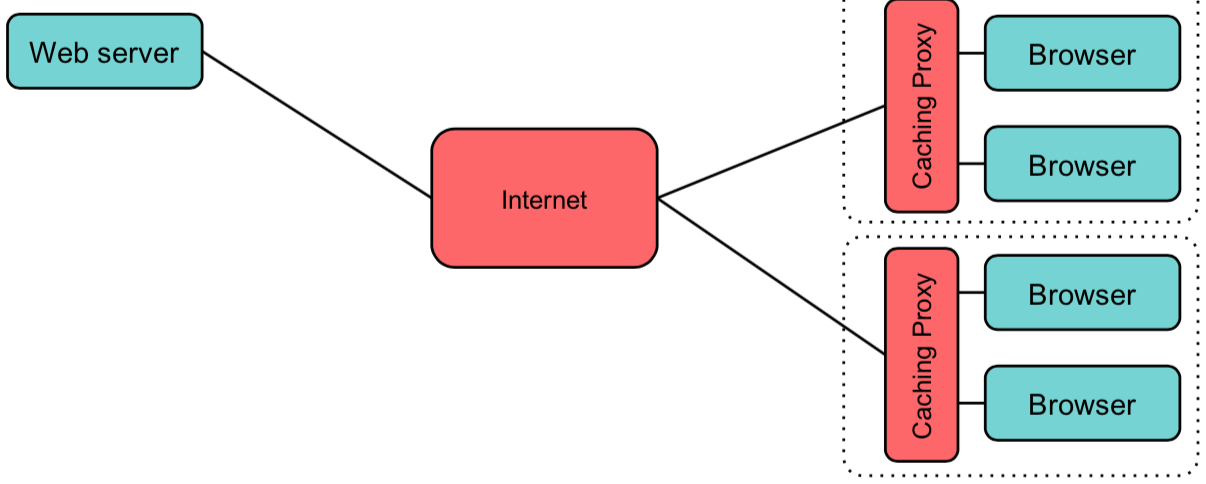

../_images/10-proxy-cdn.png

Load Balancing on Server-Side

  • Increase scalability on server-side using a load balancer
  • Advantage:
    • Scalability
  • Disadvantage:
    • Bottleneck on Load Balancer possible (e.g., network bandwidth)
    • Latency between server and client too high
    • Cluster may fail

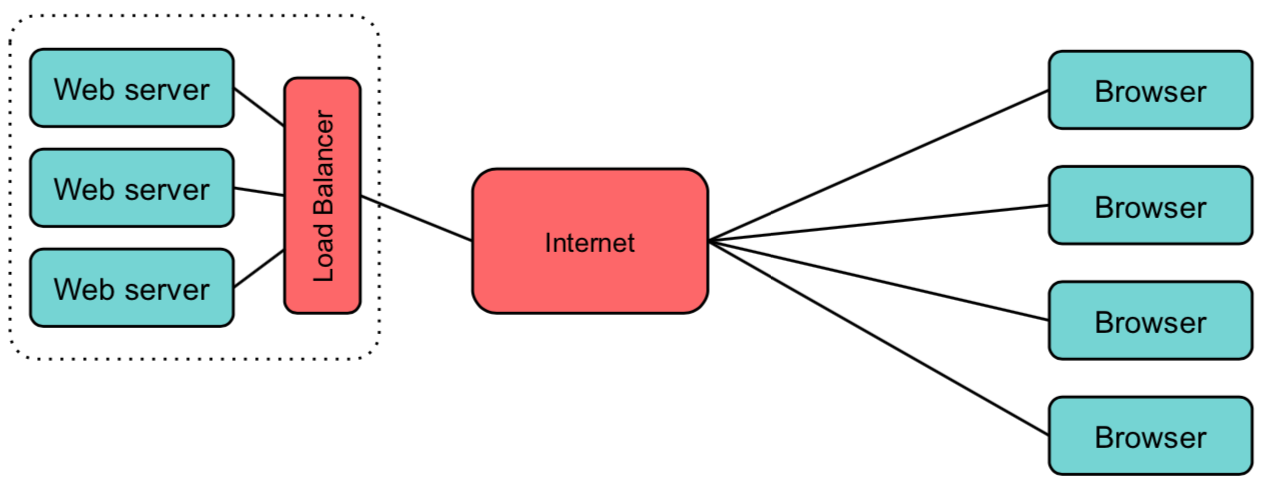

../_images/10-lb.png

Multi-Homing

  • Server establishes connections to multiple ISPs
    • Server has a single IP
    • But multiple links to different ISPs
  • Border Gateway Protocol distributes address
  • Clients may take different routes to the server
  • Advantage:
    • Tolerate ISP failures
  • Disadvantage:
    • Re-routing takes time

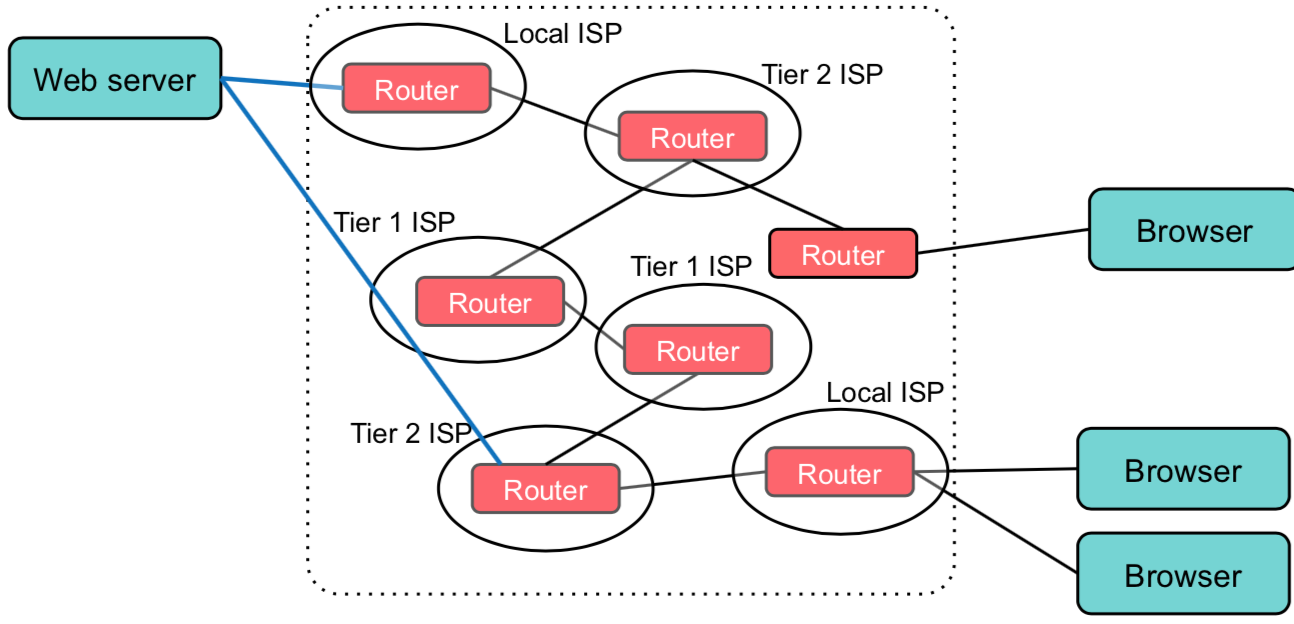

../_images/10-multihoming.png

Mirroring / Replication

  • Synchronize multiple servers (containing the same static files)
  • Use the ISPs as Load Balancer
  • Advantage:
    • Fault-tolerant for ISPs and servers
  • Disadvantage:
    • Synchronization is not trivial

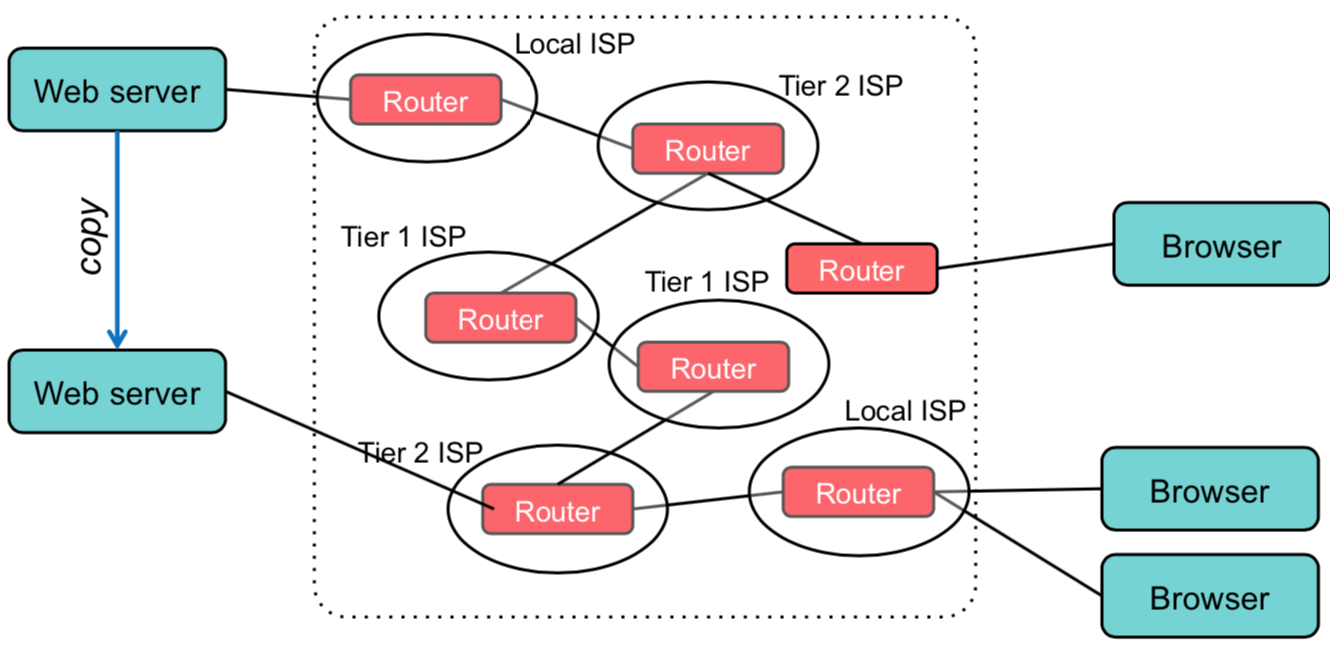

../_images/10-mirroring.png

Akamai

  • Akamai:
    • Content Delivery Network
    • Based on MIT research
  • Facts of the company:
    • 240 000+ servers
    • 1 600+ networks
    • 130+ countries
    • 15-30% of Web files are distributed
    • 30 Tbps cumulated bandwidth
  • Goal:
    • Counter problem of the flash crowd
    • Provide data by servers having a low latency, being non-overloaded and which contain the data
  • Note: Internet structure
    • Internet is composed of many autonome systems (AS)
    • ISPs are interested in:
      • Fast connection between user and network (last mile)
      • Fast connection of servers inside their network
  • Architecture:
    • Provide an overlay-network
    • Cluster of cache servers which are distributed over many ISPs
    • Cache servers are fully-meshed
  • Workflow:
    1. Client wants to load a static file (akamai.org/...)
    2. Name resolution:
      • Akamai uses own DNS servers
      • DNS server selects the nearest edge server
      • Receive monitoring information:
        • Request origin
        • Availability and load of servers
        • Network topology (BGB, traceroute)
      • Usually, an edge server in ISP range of the client is preferred
    3. Routing
      • Client connects to the edge server
      • Either, the edge server has the requests resource
      • Otherwise, connect to the original server
  • Advantages:
    • Data is locally stored
    • Dynamic content is still on original server
    • Maybe, use a hierarchy of cache servers (i.e., parent and edge)
    • Routing (multiple different routes)
    • Security
      • High capacity (robust, e.g., DDoS)
      • Use monitoring to detect attacks
      • Protects the original services (shield)
  • Types of resources:
    • Static content (very long)
    • Dynamic content possible
      • i.e., Edge Side Include (markup language for CDNs to dynamically generate content)
    • Streaming (internal distribution)

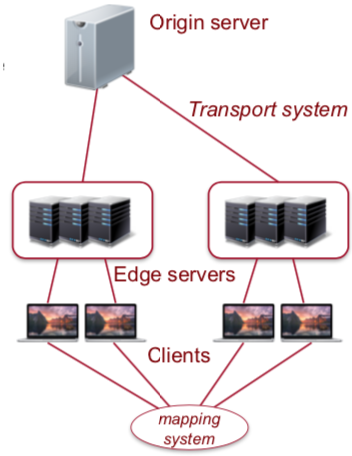

../_images/11-akamai.png.
