WebAssembly

Motivation

• Web applications become more complex
• e.g., audio, video, 3D objects, games
• Problem with JavaScript:
  • Slow execution time compared to native code
  • But: No real alternative exists
  • Performance improved by Just-In-Time compiling (only works sometimes)
• Alternative languages failed (e.g., ActiveX, Flash, Java)
• Current trend:
  • Transform other languages to JS
  • Use languages with better concepts
    • e.g., TypeScript having type safety
  • Use languages with better performance
    • e.g., C++ code is transpiled to asm.js
    • asm.js a faster subset of JS (foundation for WebAssembly)
• References: WASM concepts

---

Basics

• WebAssembly (WASM) is a byte-code format
  • Secure
  • Rapidly executable (performance)
  • Portable
• Security:
  • In other languages security is achieved by the interpreter/runtime environment
  • Low-level code can not be secured that easy
• Performance
  • WASM is ahead-of-time compiled
  • Performance of ahead-of-time compiled code is better than interpreted code
  • Format must be compact for fast loading
• Portable
  • Important property for web technology
  • Requires that the format is hardware- and platform-independent
• Summary
  • Supported by many browsers
  • No multithreading

---

Technical Realization

• Technical:
  • WASM realizes a virtual Instruction Set Architecture (ISA)

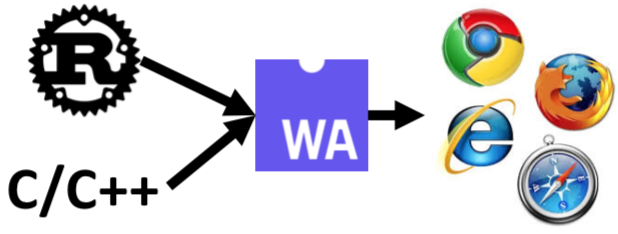

  • ISA can be target of different programming languages
  • e.g., compile C++/Rust to WASM
  • Requires languages with static memory management

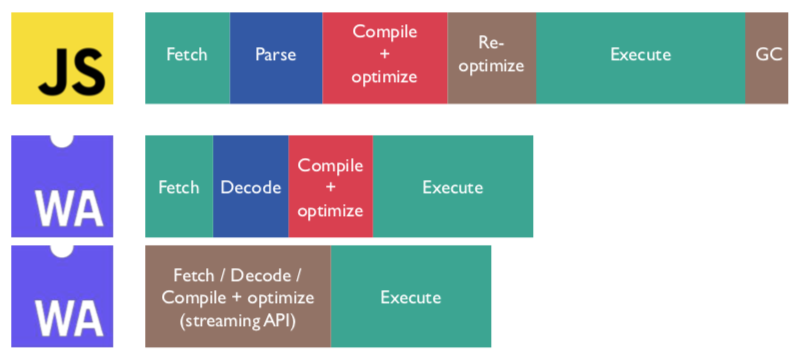

• WASM vs. JavaScript:
  • WASM is loaded faster
  • WASM is executed faster
• Code format:
  • Low-level byte-code format
  • Has a binary and textual representation (equal)
  • Supporting 32-bit/64-bit integers (i32, i64)
  • Supporting floating point numbers (f32, f64)

Concepts

• Module:
  • Compiled binary program
  • Stateless
  • Can be shared with Web Workers
  • A Program is called module
• Memory:
  • Provides an ArrayBuffer (variable length)
  • Represents the memory section of the program
• Table:
  • Array with variable size for references
  • These could not otherwise be stored in the memory segment (portability or security reasons)
• Instance:
  • Instance of a module paired with a memory and a table
  • Stateful and resolved imports
  • Comparable to ES2015 module

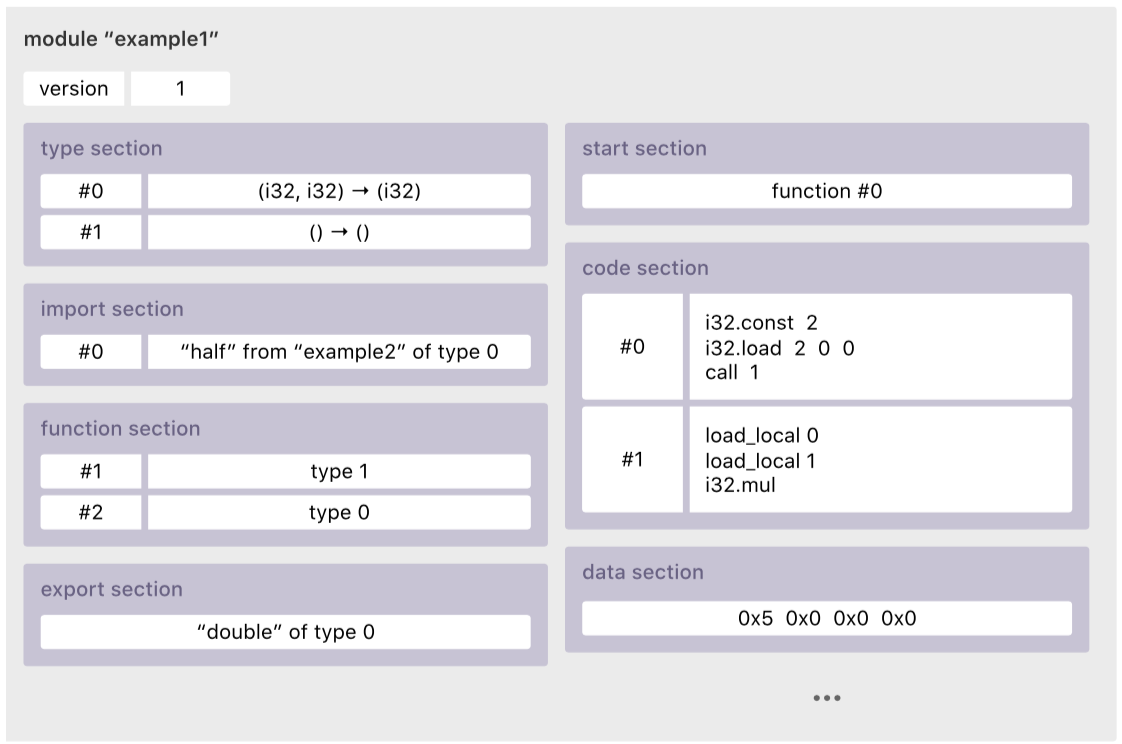

Module Sections (Anatomy)

1. Type
   • Function signature declaration
   • Contains all functions declarations of the module
   • Example:
     • (i32 i32 -> i32) // func_type #0
     • (i64 -> i64) // func_type #1
2. Import
   • Import declarations
   • Lists external dependencies (module name, field name and type)
   • Browser resolves the dependencies
     • Enable dynamic linking
     • Enable the embedding of other modules and the use of extern functions
   • Example:
     • ("dumb-math", "quadruple", (func_type 1)) // func #0
3. Function
   • Function declarations
   • Define an index of functions implemented by the code segment
   • Call functions by their index (func #N)
   • Example:
     • (func_type 1) // func #1
4. Table
   • Indirect function table
   • Contains one or more tables
   • Tables contain elements which are not directly accessible by WASM (e.g., JS objects, file descriptors)
   • Connect the low-level un-trustable linear memory and the higher-level language functions and references
5. Memory
   • Memory attributes
   • Allocate additional/optional memory for the module
   • Requires initial and maximal size
6. Global
   • Global declarations
   • Declare all global variables (cf., static from C++)
7. Export
   • Exports
   • Define all extern accessible elements
   • e.g., ("half" (func 1))
     • “half” can be combined to function half(arg0:int64):int64 using the function and the type section
   • This can be functions, tables, memory segments and global variables
8. Start
   • Start function declaration
   • Define a main()-function
   • Function is called if the module is loaded
9. Element
   • Elements section
   • Initialize the previously imported or previously defined tables
10. Code
    • Function bodies
    • Contains code of all functions
    • Functions are provided by the order in the index (function section)
    • WASM represents an abstract stack-machine
    • Additional operations: div, add, eqz (check if zero)
11. Data
    • Data segments
    • Set imported and locally defined memory regions
    • e.g., reserve 4 bytes for an i32 value

---

Operations

Translation and Execution

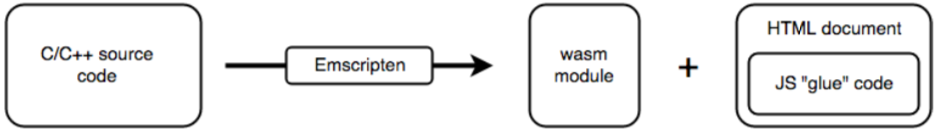

• Translation (emscripten):
  1. Clang/LLVM compiler takes C++ files
  2. Clang/LLVM generates a intermediate representation
  3. Emscripten converts intermediate representation to a .wasm file (module)
• Execution:
  • Problem: WASM can not access the DOM
  • Only call JS functions exchanging integers and floats
  • Glue code: Emscripten provides helper functions (enable connection between WASM and browser API)
• Emscripten helper functions:
  • Provides popular C++ libraries
  • e.g., SDL, OpenGL, OpenAL, POSIX
  • Must be connected to Web API of the browser
  • Must be provides on loading the module
  • e.g., redirect stdout to a textarea
• Using JS it is possible to generate WASM modules (using the plain text format)
• Example: emcc hello.c -s WASM=1 -o hello.html
  • -s WASM=1: Create WASM code
  • -o hello.html: Create template with helper functions
  • Result: hello.{wasm,js,html}

Calling Functions

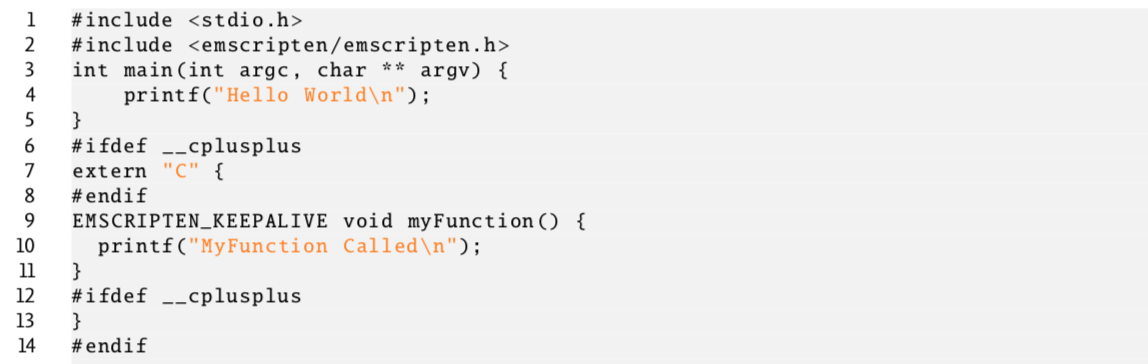

• To use a WASM function in JavaScript, mark the function using EMSCRIPTEN_KEEPALIVE
• To keep the module running after calling the main() function, compile with NO_EXIT_RUNTIME=1
• Calling function from JavaScript:
  • Module.ccall('myFunc', null, null, null);
  • 1st argument: Name of function
  • 2nd argument: Return type
  • 3rd argument: Argument types
  • 4th argument: arguments

Importing Functions

• Situation: WASM code imports a function I
• Script must function I to JS function

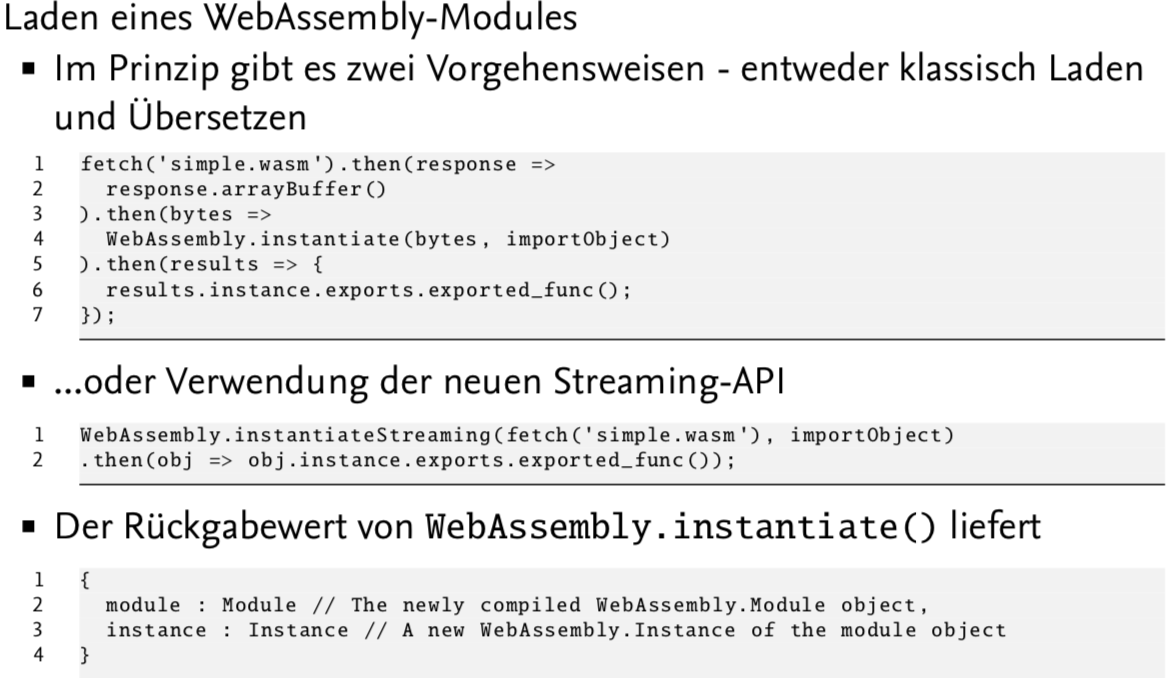

Loading Modules

• Two types:
  • Classic loading and translation
  • Streaming API

Using Memory

• Each module has its own memory region (address starts at 0)
• Goal: Isolation between instances
• JavaScript perspective:
  • WASM module memory is ArrayBuffer with variable length
  • Memory can also be creating using JS
    • var m = new WebAssembly.Memory({initial: 10, maximum: 100})
    • Allocate multiple of 64 KB
• Access:
  • Getter/setter
  • new Uint32Array(memory.buffer)[0] = 42
• Increase memory:
  • memory.grow(bytes)
  • Until the maximum size (then, WebAssembly.RangeError)
• Memory can be accessed from both sides:
  • Advantages:
    • Initialize memory while module is loaded (save time)
    • Use memory in multiple instances (realize dynamic linking)

Using Tables

• Tables are the only way to call functions
• Tables can be accessed/edited/resized by JS
• Functionality is required for dynamic linking

Caching

• Problem:
  • Complex applications have a lot code which must be compiled
• Idea: Store the compiled modules in an IndexedDB
• Use versioning to get correct version
