Web Technology

URI

• Uniform Resource Identifier
• Goals:
  • Unique identification of resources
    • e.g., documents, mails, websites, inboxes
  • Uniform schema for referencing
    • Extendible format
    • Human-readable format
    • Machine-readable format
• Contemporary view: Everything is a URI with different schema
• Format:
  • <schema> "://" [ <user> [ ":" <password> ] "@" ] <host> [ ":" <port> ] [ "/" <url>]
  • e.g., http://john@bitbucket.de:9000/home

---

HTTP

• Development Goals of HTTP 0.9
  • Easy Request-Response-based communication
  • Unique identification of resources (each HTTP request contains an URI)
  • Stateless protocol
  • Metadata for communication (headers, status codes)
• Further developments
  • HTTP is standardized by the W3C and the IETF
  • Most prominent version is HTTP 1.1
  • Newest version is HTTP/2
• Versions
  • 1991: HTTP 0.9
  • 1991-1995: HTTP 1.0
  • 1995-2014: HTTP 1.1
  • 2014: HTTP/2
• HTTP 0.9/1.0/1.1
  • Text-based protocol (easy processing)

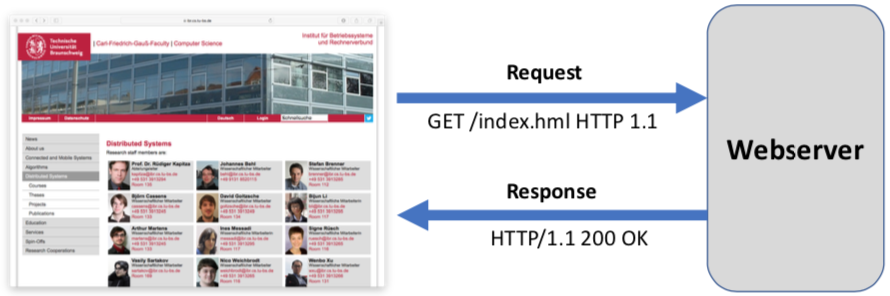

  • Request-Response-interaction
    • Client sends request
    • Server sends response

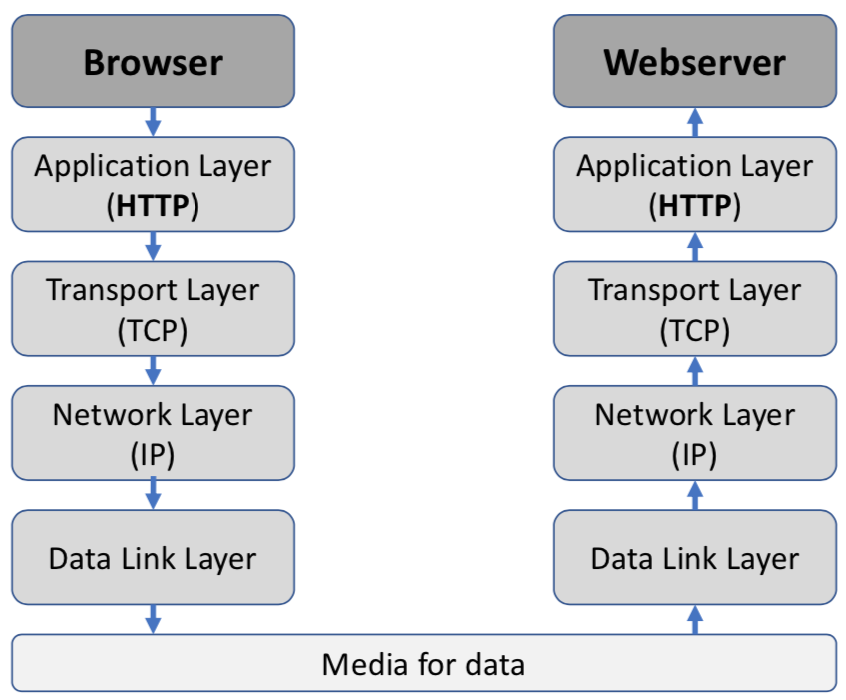

• Protocol stack:
  • HTTP: Protocol of the application layer
  • Thus, it requires a transport protocol (usually TCP)

HTTP Message

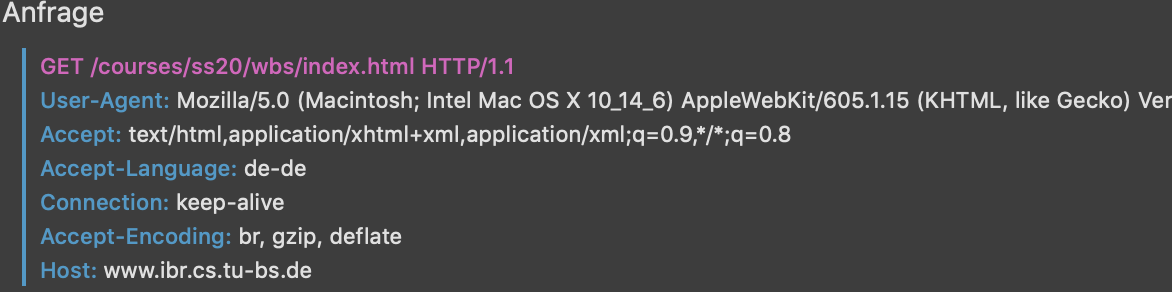

Request

• Structure:
  1. Method type
     • e.g., GET /robots.txt HTTP/1.0
  2. Request header
     • Additional information for the request
     • e.g., User-Agent: Mozilla/5.0
     • e.g., Host: www.fau.de
  3. Empty line
  4. Optional Payload (body)
     • Content
     • Described by different headers (e.g., Content-Type, MIME-Type)
• Methods:
  • GET: Simple data request (identified by an URI)
  • POST: Send data
    • State-changing operation
    • Data stored on the body
  • HEAD: Like GET, only send response header
    • e.g., error detection
  • PUT: Save data (create resource if it not exists)
  • DELETE: Delete a resource
  • OPTIONS: Request information about server (e.g., supported methods)

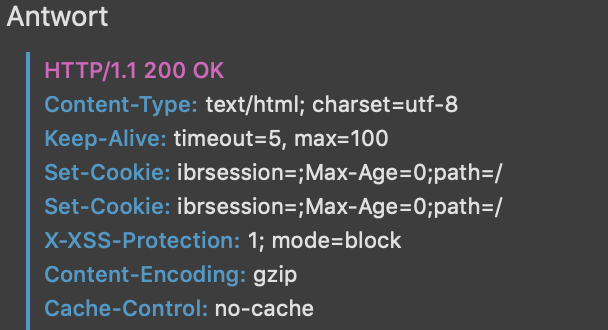

Response

• Structure
  1. State
     • e.g., ´HTTP/1.0 200 OK`
  2. Response header
     • e.g., Set-Cookie: foo=bar
     • e.g., Server: Apache/2.0
  3. Empty line
  4. Optional body
• Data
  • May be arbitrary (given by Content-Type-Header)
    • e.g., Content-Type: text/html
  • Multiple parts: multipart/mixed
• Status Code
  • 1xx: Informational response
    • 102 Processing
  • 2xx: Success
    • 200 OK
  • 3xx: Redirection (regard Location header)
    • 301 Moved Permanently
  • 4xx: Client errors
    • 400 Bad request
    • 404 Not found
  • 5xx: Server errors
    • 500 Internal Server Error
    • 501 Not Implemented

TCP/IP Connections

• HTTP 0.9/1.0:
  • One TCP/IP connection per request-response-pair
  • Servers are completely stateless
  • Problem: Repeating establishment of a new connection is expensive
    • TCP three-way-handshake
    • TCP slow-start (start transmission with few packets)
    • Requires system resources (network, etc.)
• Enhancements:
  • Re-usable connection (HTTP 1.0)
    • Multiple requests use the same connection
    • Connection: Keep-Alive header
    • Default in HTTP 1.1
  • HTTP Pipelining (HTTP 1.1)
    • Multiple requests after another (without waiting for the response)
    • Responses come in the same order
    • Problem: Head-of-Line Blocking
      • If one requests is blocked, all others are blocked too
      • Thus, use multiple TCP connections (2-8)
• HTTP/2
  • Binary framing layer with one TCP connection per origin
  • ==Where does this info come from?==

HTTPS

• Not: Secure-HTTP (S-HTTP)
• Security concerns of HTTP:
  • Confidentiality: Communication is plain text
  • Integrity: Sent data can be manipulated
  • Authentication: Credentials are transferred un-encrypted
• HTTP Secure:
  • HTTPS: Build HTTP on top of TCP using TLS
  • Default port: 443
  • Scheme: https
  • Messages are completely encrypted
  • TLS is used to select encryption ciphers and keys
• Workflow connection
  • Setup:
    • Browser contains a list of root CAs
    • Server has a certificate (indirecly) signed by one of these CAs
  • Browser sends supported ciphers to server
  • Server sends certificate (X.509) to browser
  • Browser checks the certificate validity and finishes the establishment of the connection

HTTP/2

• Goals:
  • Reduce latency (by full request-response-multiplexing)
  • Minimize protocol overhead (by efficient compression)
  • Keep semantics of HTTP 1.1 (prevent rewriting applications)
  • Solve problems of HTTP 1.1
    • Fix sensitivity against variable Round-Trip-Time ==What does that mean?==
    • Fix Head-of-line blocking
    • Avoid parallel TCP connections
• History:
  • 2009: Start of development at Google
    • Research network SPDY
    • Goal: Reduce loading time of websites by 50 %
  • 2012: Chrome, Firefox and Opera support the protocol
    • IETF HTTP WG initiate standardization process
  • 2015: Publication of HTTP/2 and HPACK
• Overview:
  • Core concept: Binary-framing layer
    • Framing is another word for formatting
    • Multiplexing: One TCP connection for the complete communication with one web server
    • Stream Prioritization (each request is encapsulated in a stream)
  • Flow control
  • Server push (pro-active sending of resources)
  • Header compression: HPACK
• Three options for establishing of connections:
  1. Default: Initiate connection with TLS connection over ALPN (Application-Layer Protocol Negotiation)
  2. Upgrade of HTTP/1.x connection (HTTP upgrade)
  3. Pro-active creation of HTTP/2 connection using pre-shared knowledge (e.g., DNS entry)

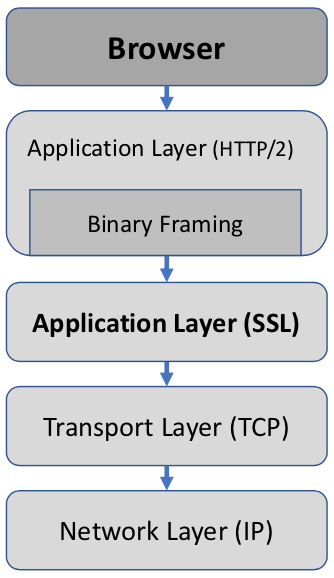

Binary Framing Layer

• Task: Transmission of HTTP messages between client and server
• Layer:
  • New encoding mechanism between socket and higher HTTP API
  • Transparent to application (only change browser and web server)
• Split HTTP messages into frames
  • Frame: Small binary parts
  • Advantage: Performant, robust, correct implementation
  • Disadvantage: Human-readability gets lost
• Binary Framing Layer concepts:
  • Request-Response-Multiplexing

HTTP/2 Connection

• Communication: Performed over a single TCP connection carrying any number of streams
• Stream:
  • Bi-directional communication for one or more messages
  • Has unique ID
• Message: Complete sequence of frames composing a HTTP request or response
• Frame:
  • Smallest logical unit for data transmission
  • Contains a reference to the stream in the frame header
  • e.g., HTTP headers, payload, …
  • Frames may interleave each other
• Advantage:
  • Improved performance (fewer TLS handshakes, less client/server resources)
• Disadvantage:
  • Single TCP connection may suffer of TCP congestion window size reduction which reduces the maximum throughput
• Result:
  • Experimental evidence shows, that HTTP prioritization and compress out-weight the negative effects of TCP head-of-line blocking

Multiplexing

• HTTP/1.x:
  • Parallel requests require multiple connections
  • So-called Response queuing results in head-of-line blocking
• HTTP/2:
  • Parallel requests over one connection
  • Split HTTP messages, interleave them, reassemble them
  • Advantage: No blocking of messages – if one message is blocked the others can be sent
• HTTP/1.x optimizations are obsolete
  • e.g., image sprites: Single image file with multiple images
  • e.g., concatenating files: one big CSS file

Stream Prioritization

• Goal:
  • Organize/order sent data in a way that the website can be rendered as fast as possible
  • Worst case: For all responses the headers are sent first, etc.
• Stream ‌Prioritization:
  • Browser may give hints which content is required at which time
  • These hints may change dynamically
    • e.g., HTML is required first, then CSS, then images
    • e.g., take mouse movements into account
  • Weights and dependencies are a preference
• Technical realization:
  • Each Stream gets a weight/priority (1 to 256)
  • The higher the weight, the more resources for this stream should be allocated
  • Each stream may have an dependency on another stream
    • Browser can send a prioritization tree for the responses
    • Server can use this information
    • No dependency means depend on root
  • These dependency trees are traversed
• Note: The arrow should be flipped for better understanding of the dependsOn-relationship

Flow Control

• ‌Flow Control:
  • Mechanism to prevent that the sender overwhelms the receiver with undesired data
  • e.g., Client wants to pause that the servers sends of data in a single stream
  • Comparable to TCP flow control
• TCP flow control:
  • Is too coarse
  • Limits complete connection, but HTTP/2 has multiple streams over a single connection
• Technical realization:
  • Flow control can’t be disabled
  • Client and server exchange a SETTINGS frame, which contains the flow control window size for both directions (default \( 65535 \) Byte)
  • The window is reduced if the sender emits a DATA frame
  • The window can be increased using a WINDOW_UPDATE frame
• Implementation must be done by client and server
  • e.g., the time of reducing the window
• HTTP/2 only delivers building blocks

Server Push

• Use case:
  • Client requests HTML page including CSS files
  • Server directly sends CSS files to prevent the client of requesting each file individually
  • One request – multiple responses
• Goal: Make information available before the browser requests them
  • HTTP/1.x Inlining is obsolete
    • e.g., put style sheet directly into HTML page
  • Difference to inlining: Each resource may be multiplexed/cached/declined/reused
• Advantage: Reduce latency by reducing messages
• Technical realization
  • Server sends a PUSH_PROMISE frame to indicate that a push will follow
  • Server sends PUSH_PROMISE before the actual DATA frame to inform the client (very important)
  • Server initiates new stream for the push
  • Browser may decline PUSH_PROMISE frame via RST_STREAM
  • Browser keeps pushed data in quarantine until he uses it

Header Compression

• Problem:
  • HTTP headers make up to 500-800 Byte per message
  • For small responses, headers are overhead
• Idea: Compress headers
  • Using HPACK compression format
  • Do not re-send common headres
• Technical realization:
  • Techniques:
    1. Header fields are Huffman encoded (e.g., string compression method based on the entropy)
    2. Shared index/cache/context: Sent headers are not sent again (client and server must maintain this index)
  • HPACK compression context:
    • Consists of static and dynamic tables
    • Static table:
    • Common HTTP header values
      • Defined by the specification
      • e.g. :method: GET
    • Dynamic table:
      • Contains headers which are not defined in the specification and is build over the connection lifecycle
      • Initially empty
      • One per (TCP-)connection

.

---

HTML and CSS

• Browser visualizes documents written in HTML
• Markup language:
  • Machine-readable language for structure and rendering
  • e.g., <title>WBS lecture</title>
• HTML:
  • HyperText Markup language
  • Default rendering defined by browser
  • The What

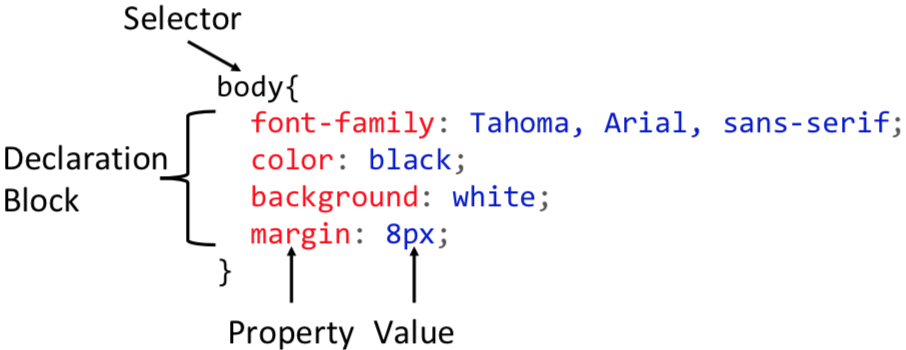

• CSS:
  • Define rendering
  • The How
• History:
  • Past: HTML was static
  • Current: HTML documents are dynamically generated on the server side and modified by the browser

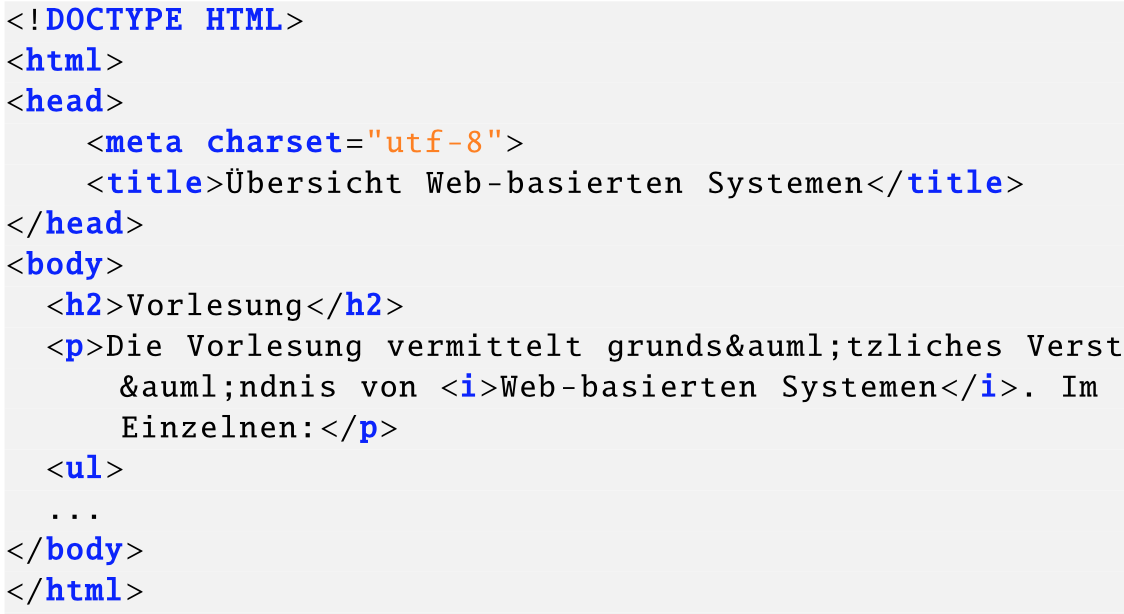

HTML

• HyperText Markup Language:
  • Text-based markup language for the structuring and rendering of digital documents such as texts with hyperlinks
• Versions:
  • 1991: HTML 1
  • 1995: HTML 2
  • 1997: HTML 3
  • 1997: HTML 4
    • 2000: XHTML
      • Based on HTML 4.01 XHTML 1.0 was created
      • XHTML is HTML conform with XML and therefore stricter (not used)
  • 2014: HTML5
• Charset:
  • Usually, UTF-8 or ISO-8859-1 (Latin-1)
  • e.g., <meta chatset="UTF-8"/>
• Special characters:
  • So-called character entities
  • Format: &<name>;
  • e.g., & for &

HTML Tags

• Purpose:
  • Formatting information (e.g., italic i)
  • Structure information
    • e.g., headings, paragraph, lists, images
• Formatting information are ignored (e.g., whitespaces, tabs, newlines, etc.)
• Types:
  • Block tags
    • Define a rectangular area
    • e.g., div, p
  • Inline tags (e.g., i)

Structure

• Tags are contained inside <.>
• Most tags have an end-tag (i.e., container)
• XHTML:
  • Single tags must be closed <br/>
  • Case-sensitive (all lowercase)
• HTML5:
  • Single tags can be open <br>
  • Case-insensitive

Attributes

• Key-value pair providing additional information
• Order does not matter
• Quotation marks:
  • XHTML: Required
  • HTML5: Not required – implicitly given by a space
• Graceful degradation:
  • Property of a system (here: browser) to reduce errors
  • New/unknown attributes are usually ignored by the browser
  • e.g., if a browser does not load the img tag, it shows the alternative text
  • e.g., if a browser does not know the type=email, it renders the input field as text field
• e.g., <img src="..." alt="Title"/>

Tags for Text

• Block tags:
  • e.g., p, h1-h6, nav, header, footer, blockquote
• Inline tags:
  • Must be used within a block tag
  • e.g., em, strong, b, span
  • Difference logical and physical elements:
    • e.g., difference between b and strong
    • b is physical: Render boldface
    • strong is logical: Text is emphasized (but not necessarily boldface)
  • Physical tags are considered deprecated

Other Tags

• Images:
  • img
  • Reference using absolute/relative reference
  • Supported formats: SVG, GIF, JPG, PNG
• Links:
  • e.g., <a href="google.de">Caption</a>
• Lists:
  • Unordered list: ul‌
  • Ordered list: ol
  • List item: li
• Tables:
  • Table: table
  • Table row: tr
  • Table data: td
  • Historically, tables were used for the layout (deprecated)

CSS

• Motivation:
  • Separate content and representation
  • e.g., prevent <table border="2" bordercolor="black">...
  • Goal: More flexibility by using classes and IDs
• Advantages:
  • Uniform rendering of different websites in different browsers (e.g., corporate identity)
  • Style definitions are centralized
  • Additional design features
  • Split work (designer and writer)
• Style sheet consists of several rules

Rule Structure

• Rule consists of a selector and several declarations
• Components:
  • Selector
  • Declaration Block
    • Property
    • Value

Reference in HTML

• link tag (external source)
• style tag (local definition)
• style attribute (for specific tags)
• Order of importance:
  1. Attribute (of a tag)
  2. Local definition
  3. External source

Selectors

• Tag name/type
• Classes
  • Tag may contain several classes
  • cf. format template
  • e.g., class="class"
  • e.g., .class {...}
• IDs
  • Tag may have at most one ID (unique)
  • e.g., id="test"
  • e.g., #test {...}
• Wildcard *
• Group selector:
  • Combination of multiple selectors
  • e.g., h1, h2, a
• Descendant selector:
  • Select children/descendants
  • e.g., p.text > span.red:hover
• Pseudo-selectors:
  • e.g., :link, :visited, :first-child
  • Interaction: :hover, :active
• Tags for styling without properties:
  • div: Block tag
  • span: Inline tag (continuous text)

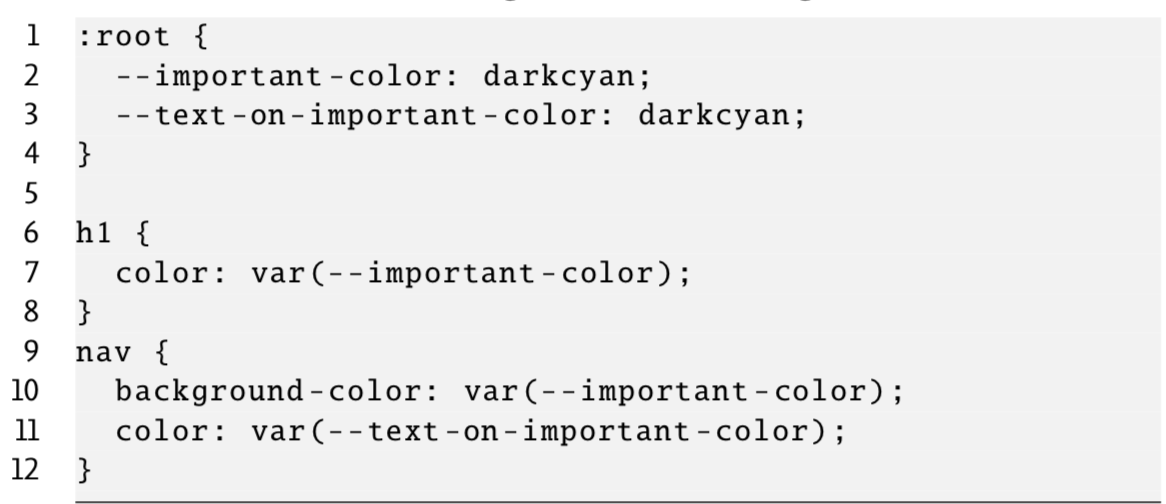

Variables

• So-called custom properties
• Define: --foo: <value>
• Access: var(--foo)
• e.g., :root { --foo: #fff; }

Properties

• Size (width, height, margin)
• Font (size, family, weight)
  • Font family either needs to be installed in the browser or via dynamically loaded Webfonts
• Color
  • Predefined names (e.g., red, green)
  • RGBA (e.g., rgba(15,0,255,0.9))
  • Hex (e.g., #1000FF)
  • Background color
• Position
• Visibility (block, none)

Measures

• Relative:
  • em: Width of letter m
  • rem: Font size of html element
  • vw: View width (in percent)
• Absolute:
  • Pixel px
  • Millimeter mm
  • Centimeter cm
  • Inch in
• Colors: color, background-color

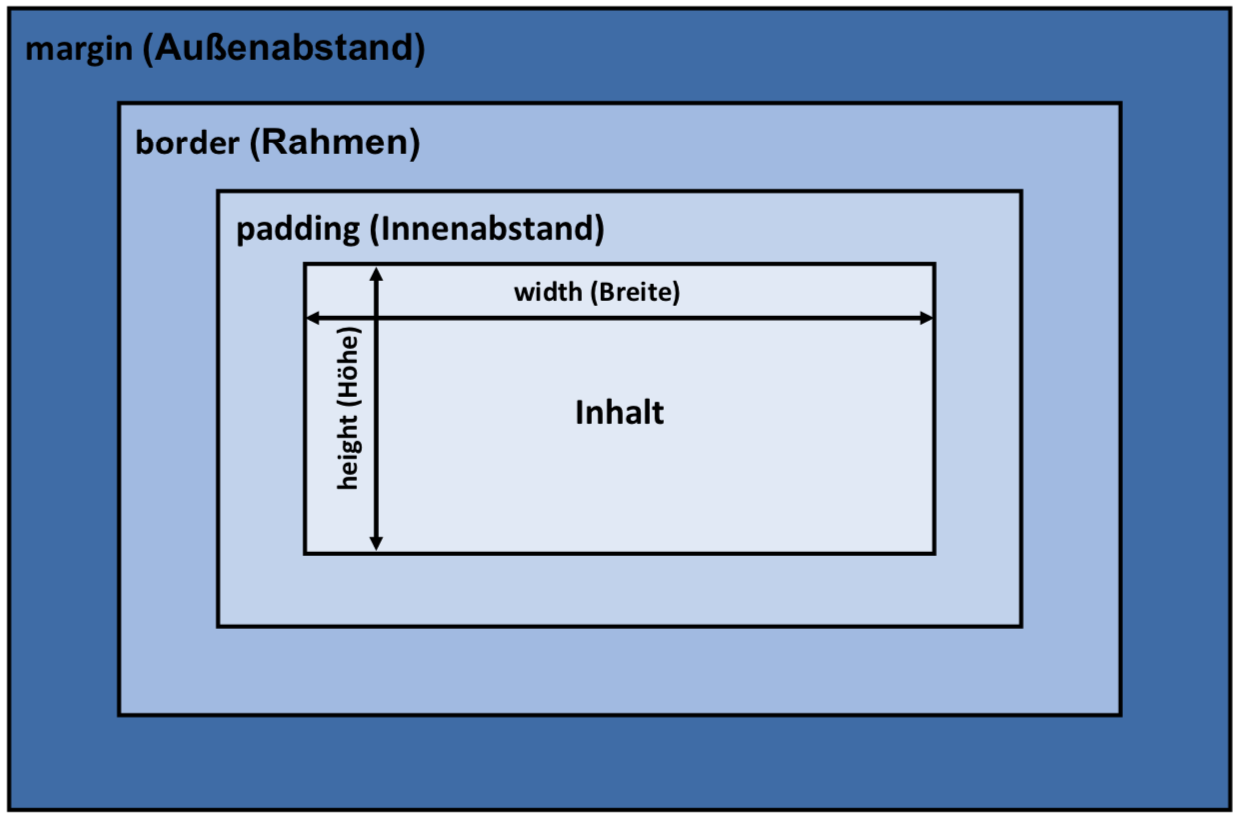

Box Model

• Components of a block:
  • Margin
  • Border (Background-image goes up to the border)
  • Padding
  • Content
• Use the box-sizing property
  • content-box: Default, width applies to the content (not to padding, border and margin)
  • border-box: width applies to the border (content + padding + border)
