The Browser

Architecture of Modern Browsers

• Here: Chromium
• Focus:
  • General understanding of architecture of browsers
  • Fusion of HTML, CSS and JS
  • Improving performance and security

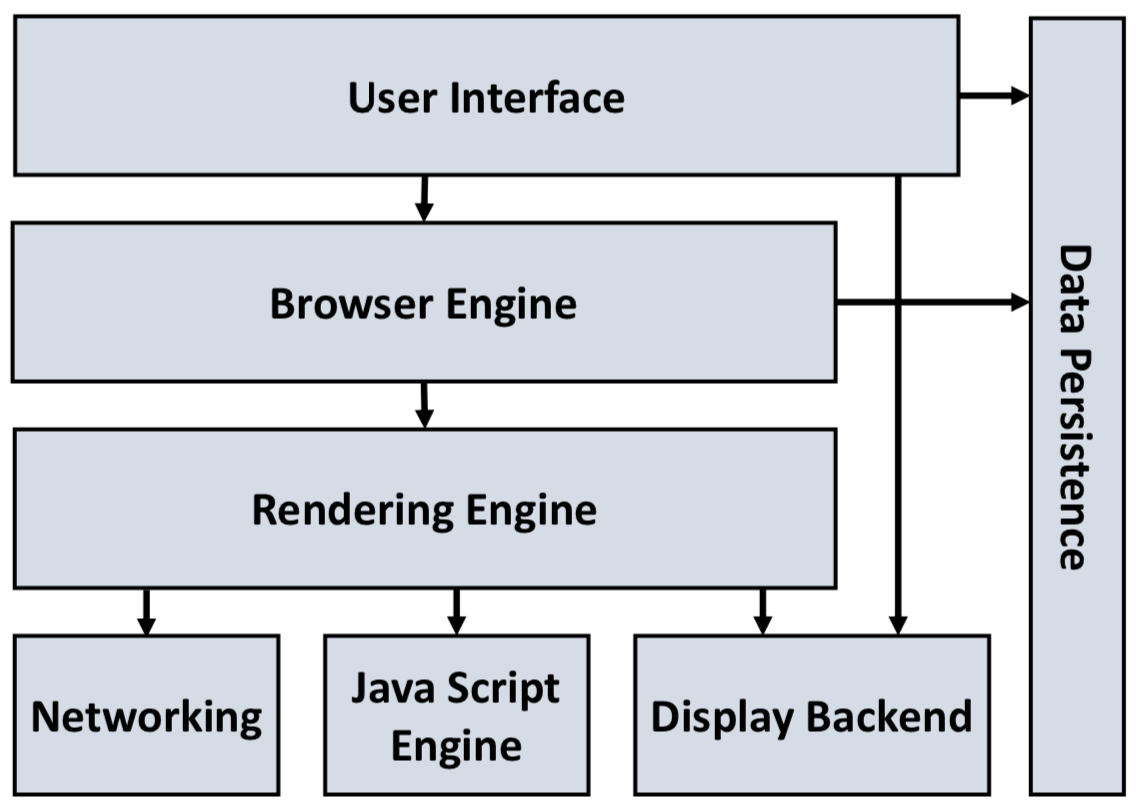

Generic Architecture

• Reference architecture for browsers
• Result of the analysis of multiple browsers
• Components:
  • User Interface
  • Browser Engine
  • Rendering Engine
  • Networking
  • Java Script Engine
  • Display Backend
  • Data Persistence

User Interface

• Layer between the user and the engine of the browser
• Surface: Toolbar, Border, Settings mask
• May be embedded in the desktop manager of the system ==What is the Desktop manager?==

Browser Engine

• Implements basic functions
  • e.g., load an URI, Browser history, Page Reload
• Provides interface to the Rendering Engine
  • e.g., may query the state of rendering engine
  • e.g., change settings of the rendering engine
• Provides interface to request further information of the session
  • e.g., progress of loading the page, state of JS engine (warnings, …)

Rendering Engine

• Rendering of HTML and CSS
  • Important: Render sites equally
• Integration of graphics
• Define layout of website
  • Positioning of all elements
  • Re-rendering after a change of the view port
• Central components: HTML- and CSS-parser

Networking

• Support the data transfer (HTTP, HTTPS, FTP)
• Conversion between encodings
• Support of different MIME types
• May support the caching of data

JavaScript Engine

• Support of JavaScript (ECMAScript)
• Interaction with the rendering engine

XML Parser

• Formerly, a separate component
• Nowadays, part of Rendering Engine

Display Backend

• Provide interface to desktop manager and OS
• e.g., provide look-and-feel of the OS (fonts, colors)

Data Persistence

• Manage session data (e.g., cookies, …)
• e.g., Bookmarks, Browser settings
• Caching (of resources)
• Security information: Certificates, etc.

Architecture of Firefox Quantum

• Firefox 57.0 Firefox Quantum (2017)
  • Quantum is the also name of the Rendering Engine
  • Meanwhile Firefox 70.0 (Firefox Browser)
• Important:
  • Article is actually about the Rendering Engine
• Goal: High performance
• Most components are executed in parallel because request are processed in parallel

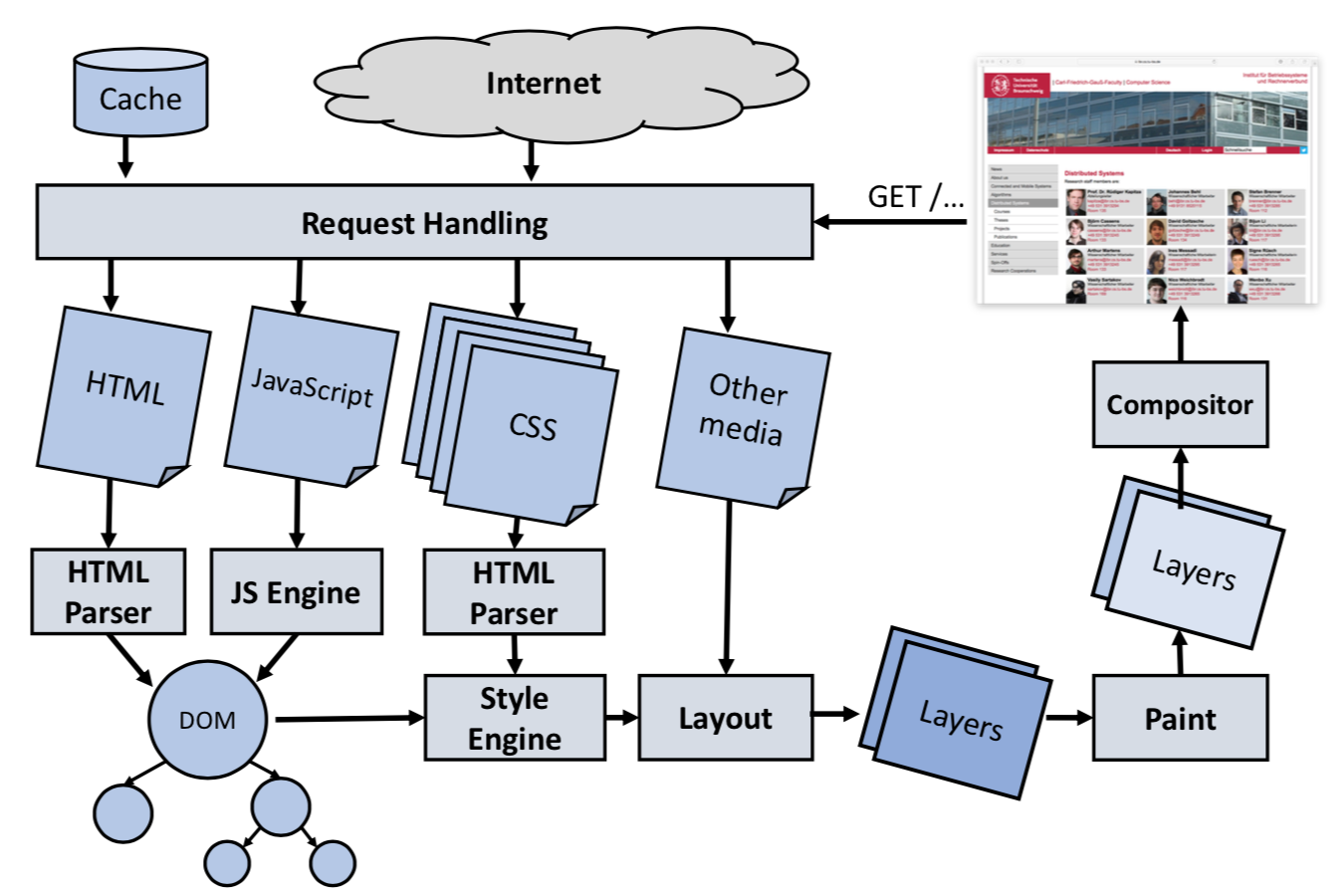

Simplified Overview

1. Load and Parse (Result: DOM)
2. CSS Processing
3. Creation of Layout
4. Rendering in Browser

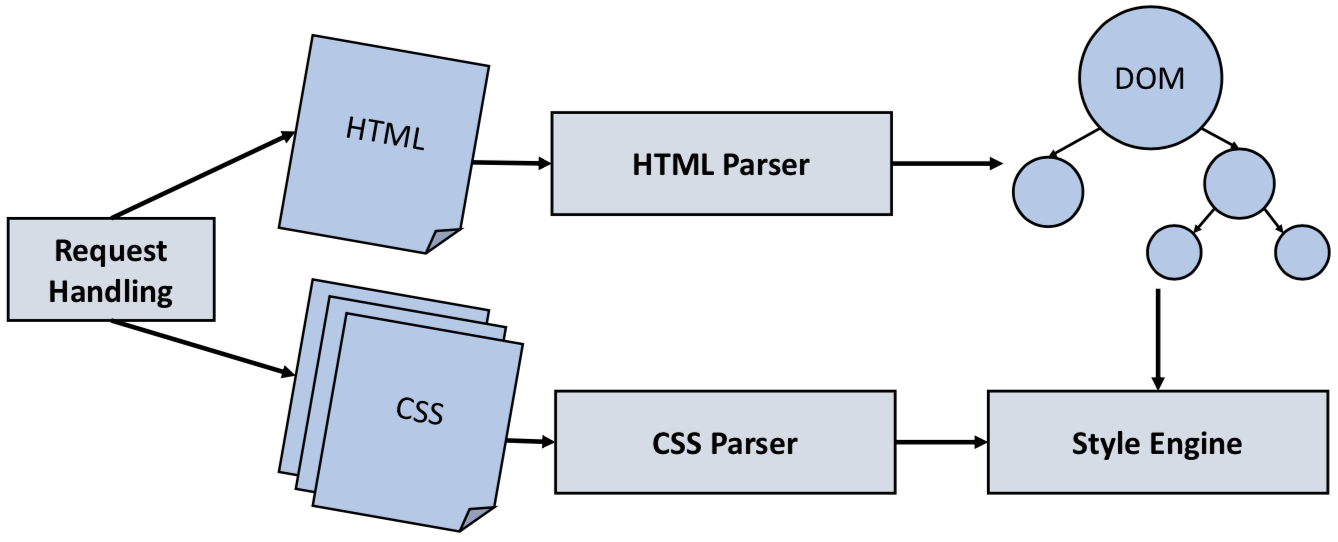

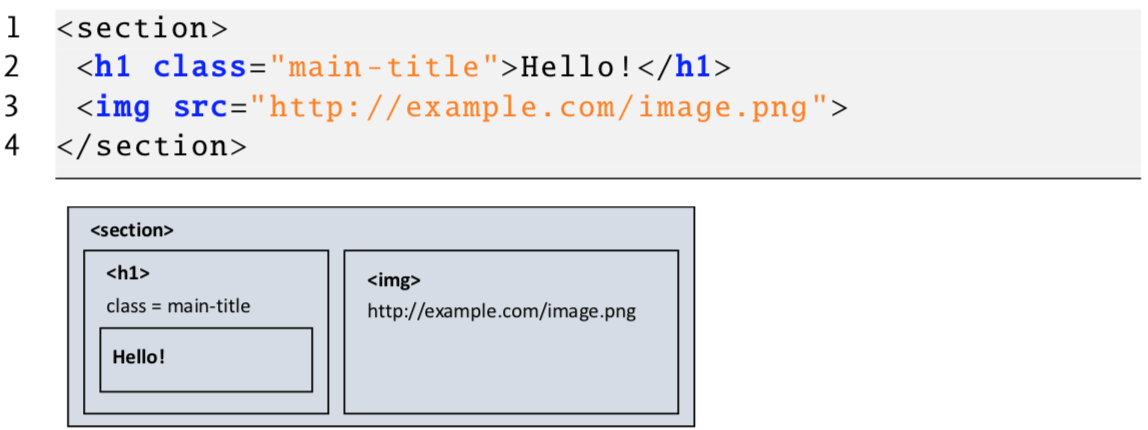

Load and Parse

1. Request Handling module:
   • Load remote data (e.g., HTML, CSS, JS, images, etc.)
2. HTML parser converts HTML document into DOM tree
3. Style and script data referenced in HTML are loaded and processed
4. Scripts may modify the DOM before the complete HTML document is parsed completely

CSS Processing

• ‌Style engine parses the CSS and applies the rules to the DOM
• The computed style is the style of an element after the CSS parsing (here, the rules of importance fire)

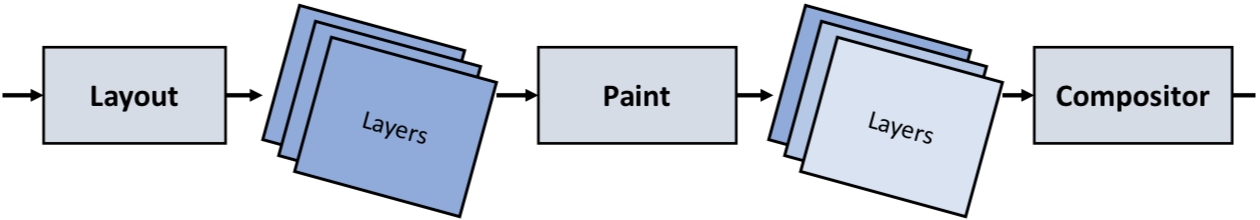

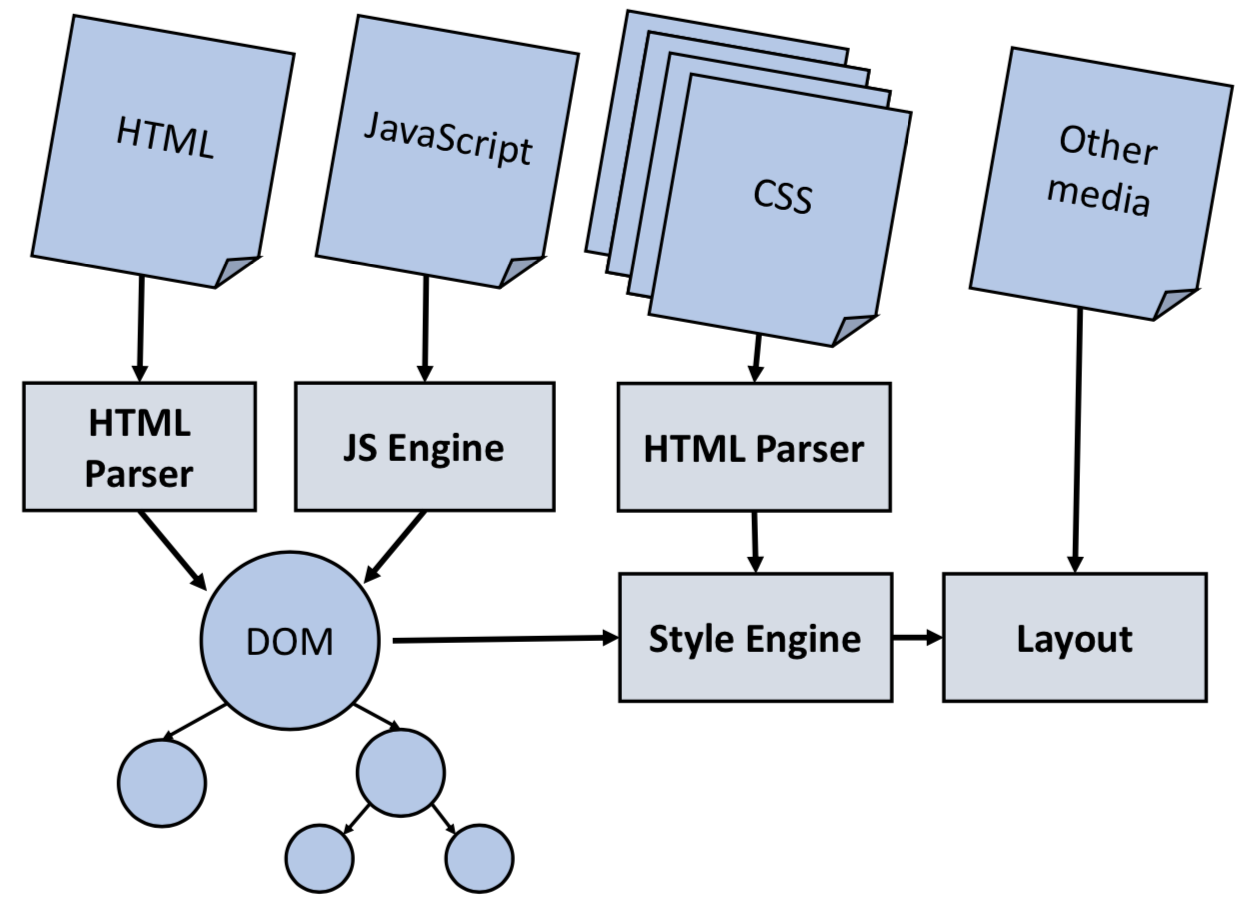

Creation of Layout

• DOM and style information are processed by layout engine
• Layout engine calculates the layout based on the window size
• Each element is computed independently
  • e.g., size of elements and applying style rules

Rendering in Browser

• Final step: Computed elements and styles are rendered
• If the view port is changed (e.g., resize, scrolling) the site is re-rendered
• Browsers often compute more than the current viewport (because the user may change this immediately)

Multi-Process Architecture and Isolation of Web Applications

• Here: Chromium Project
• Motivation
  • Browsers are getting more complex
  • Web applications are getting more complex
    • e.g., Single Page Applications, Progressive Web Applications
  • Many errors in browsers and attacks
  • Requires robust browser architecture
• Former architecture:
  • Browsers are monoliths
  • All components have full access to resources (e.g., file system, memory)
  • Problem: One error may break the entire browser
  • Problem: Bad isolation and bad performance
• Goals:
  • Add an abstraction layer for better isolation of the single components
  • Isolation concepts must be compatible to existing assumptions of the system
• Result:
  • A multi-process architecture provides more Security, Fault tolerance, Resource Management and Performance.

Chromium Architecture

• Threat model
  • Attacker (remote) knows a vulnerability in the code of the browser
  • Attacker must trick the user into loading specific malicious code
  • Attacker’s goals:
    • Installation of malware (e.g., keylogger)
    • Eavesdrop sensitive documents/data
  • NOT CONSIDERED: Vulnerabilities of web sites (e.g., phishing, XSS)
• Components
  • Rendering Engine (website-code)
  • Browser Engine (system-code)
  • Common functions: Parsing of URLs and Unicode
• Processes (granularity):
  • Simplified:
    • Each tab gets own Rendering Engine instance (including warnings of site content)
  • Except:
    • Important information (e.g., HTTPS error messages, phishing warnings) are shown in a separate instance
  • All Plug-ins are run in the same process

Rendering Engine

• Purpose:
  • Contains the complex code of the web application (thus, is error prone)
• Responsible for HTML/XML/CSS/XSLT parsing
• Decode images/SVG
• Build the DOM
• JavaScript Interpreter

Browser Engine

• Purpose:
  • Contains code which can access the underlying system
• Note: Much more powerful than the Architecture presented above (Chromium)
• Manage persistent data
• Graphic elements (e.g., window manager)
• Browser GUI (e.g., location bar)
• Network functions
• Interfaces:
  • Rendering
    • Rendering Engine sends rendered page to the Browser Engine
    • Browser Engine sends data to graphic interface
    • Problem: Data is copied twice
  • User input
    • User input is send from OS to Browser Engine
    • Either direct evaluation or transmission to Rendering Engine
    • Rendering engine only receives events which are addressed to the running web application
  • Persistent memory
    • Sandbox must ensure that Rendering Engine can not access files (e.g., in case of an attack)
    • Information about up- and downloads are handled by the Browser Engine
      • e.g., default path, window with progress
      • e.g., dialog if same file exists
      • Goal: Prevent overwriting of files
  • Network
    • Network traffic is handled completely by the browser engine
    • Rendering Engine sends requests to Browser Engine
      • Load http, https, ftp and pass result to the rendering engine
      • Block file (except user typing the URL)

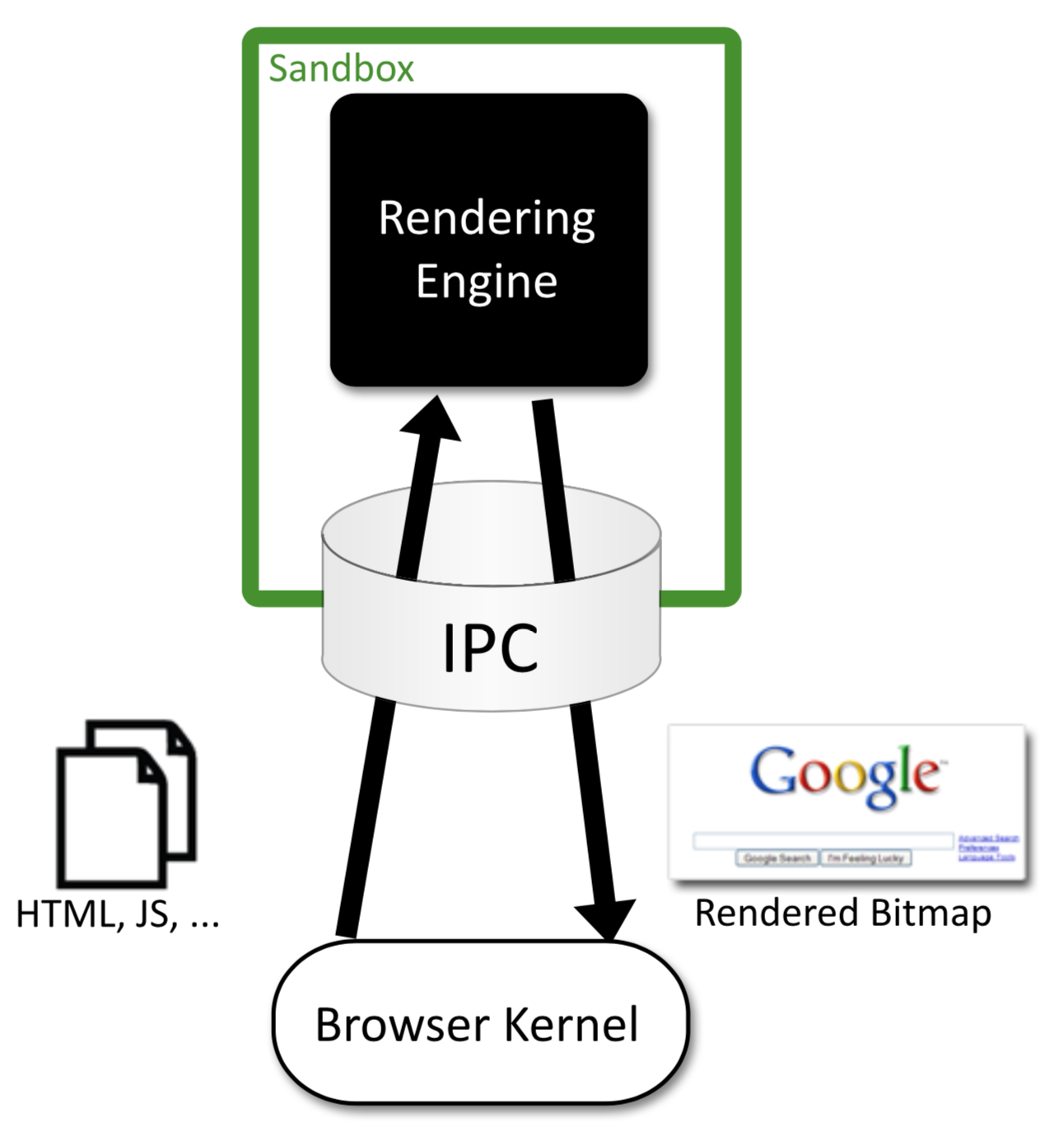

Sandbox

• Contains the Rendering Engine
• Takes all capabilities of the Rendering Engine to access the system directly (sandbox)
• All important function calls are routed through the Browser Engine

Inter-Process Communication (IPC)

• Communication between Browser Engine and Rendering Engine
• Use Low-Level IPC (formerly, async named pipes)
• Advantage: Fast and efficient
• Mojo: Name of the IPC system
  • Can be mapped onto different subsystem features (e.g., Unix domain sockets)

Evaluation

• Evaluation using the Common Vulnerabilities and Exposures (CVE)
• Use reports between 2007/07 and 2008/07 for IE, Firefox and Safari
• 38/87 vulnerabilities corresponding to the Rendering Engine could be prevented
• 70 % of vulnerabilities (arbitrary code execution) could be prevented using this architecture

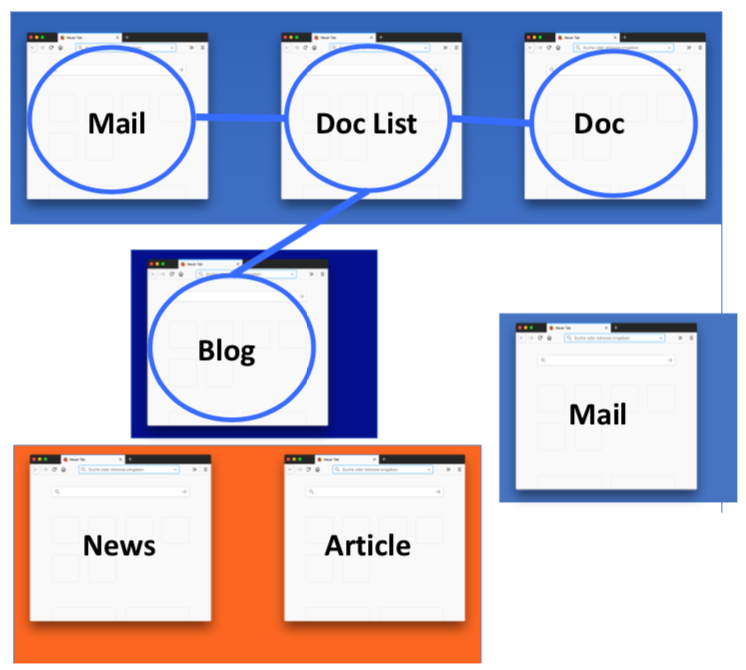

Isolation of Web Applications

• Browser context contains multiple, independent web applications
• Question: How to map complex web applications to a multi-process architecture?
• Approaches:
  • Past: All tabs to one process
  • Naive: Each tab in one process
    • Problem: Hard for communicating web sites to access the other’s DOM anymore
  • New: One group per process
• Goal:
  • Windows of a web application should be grouped and isolated (related windows and tabs)
  • Should be compatible to existing web applications
  • Idea: Use existing information
  • One group per process
• Ideal abstraction:
  • Web Program
    • Set of related sites and resources which implement a service
  • Web Program Instance
    • A running instance of a Web Program in a browser
    • Isolate using the Browser architecture
• Isolation technique:
  • Isolate using the Same-origin policy
    • i.e., protocol, host, port
    • Important: Website may change document.domain (w.r.t. known limitations)
  • References between related windows
    • using window.open() (DOM of opened site)
  • Browsing instance: Windows are connected independently of the website
  • Website instance: Intersection between Website and Browsing instance
• Evaluation
  • Performance: Fast reaction under heady load
  • Process creation time (100 ms) irrelevant
  • Much more memory consumption

.

---

APIs

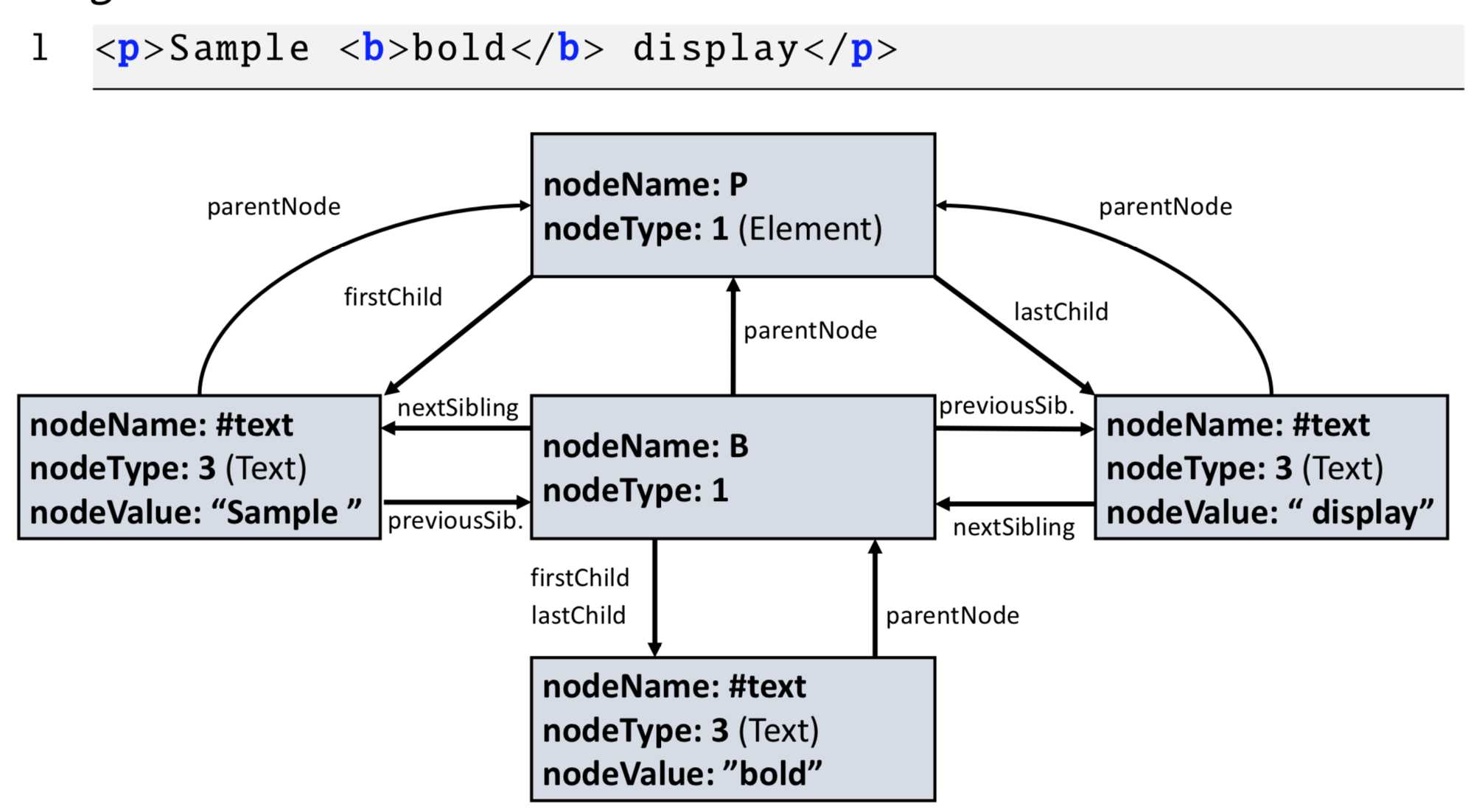

Document Object Model

• JS interface to manipulate HTML documents
• Representation of HTML:
  • Tree of elements (HTMLElement)
  • Use cases: Modification and search in HTML documents
  • Access: window.document
• Styling properties:
  • Can be manipulated by DOM
  • Problem: Bad practice, CSS should be changed
  • Use CSS classes
• Location API
  • Redirection to another page
  • window.location.href
  • Attention: Script may stop directly
• Debugging:
  • console.log(msg)
  • alert(msg)

Elements

• ca. 250 different properties per element
• Properties (excerpt):
  • nodeName (identify elements, e.g., DIV)
  • innerHTML (HTML of descendants)
  • outerHTML (HTML of descendants, including current node)
  • style.display (visibility, bad)
  • style.color (color, bad)
  • image.src
  • className (change CSS class)
  • textContent (like innerHTML but only for text)
  • offsetParent
• Navigation properties (helper):
  • parentNode
  • nextSibling / previousSibling
  • firstChild / lastChild
• Methods to read/modify attributes:
  • getAttribute(k)
  • setAttribute(k, v)
• Modification of elements:
  • document.createElement(<tag>)
  • el.appendChild(<node>)
  • Clone: node.cloneNode()
  • Remove: node.removeChild(<child>)

Navigation

• Structure
  • window.document.head
  • window.document.body
• Problem:
  • Usage of document.body.firstChild.nextSibling... is too strictly tailored to current structure/DOM
• Approaches:
  • IDs: getElementById(<id>)
  • Classes: getElementsByClass(<class>)
  • Tag names: getElementsByTagName(<tag>)
  • CSS selectors: document.querySelectorAll(<selector>)

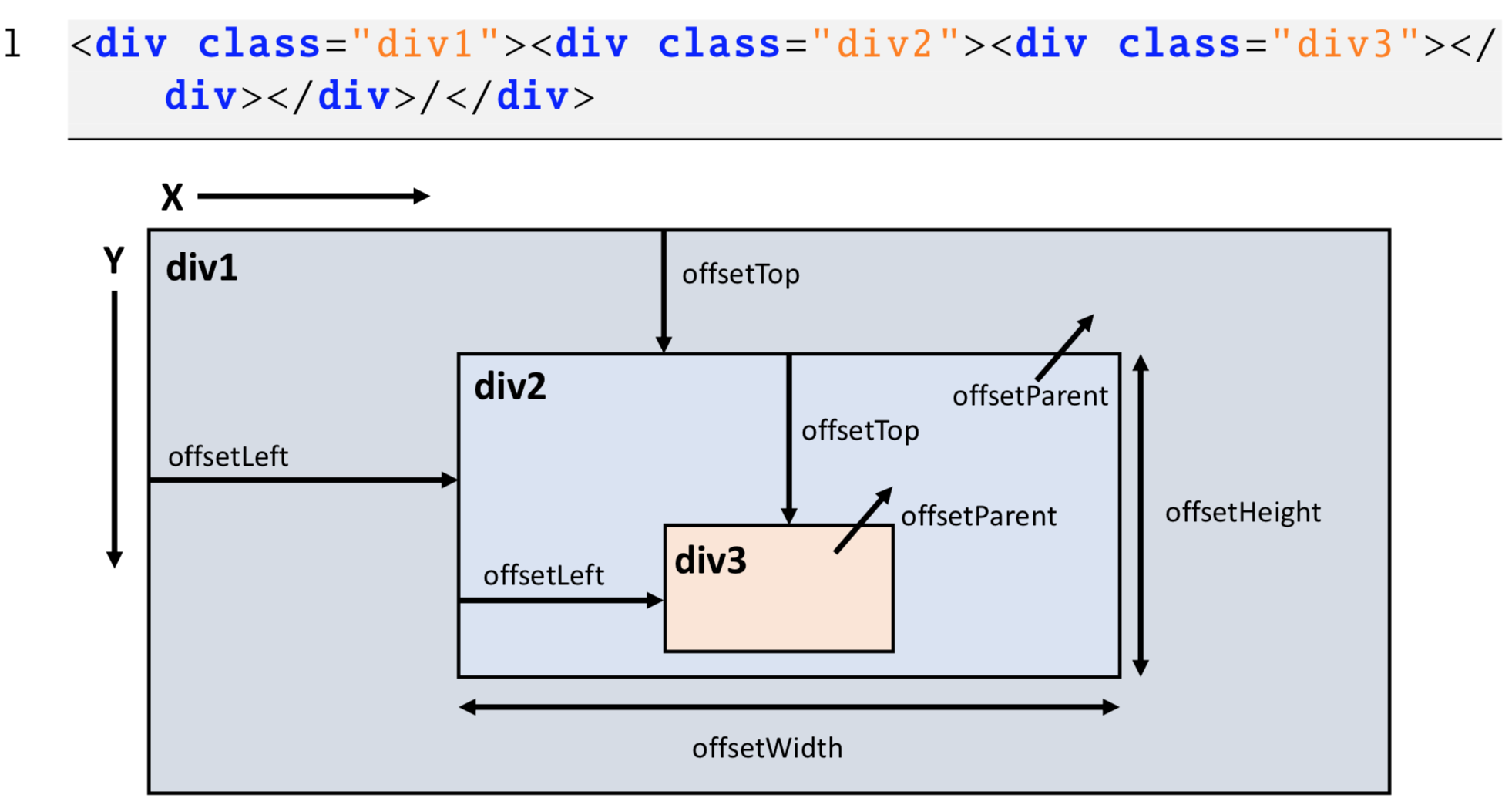

Positioning

• DOM can be used to change the position of elements
• Properties:
  • offsetLeft, offsetRight, offsetParent, left, top
  • Values are relative to el.offsetParent
• Usually, the browser positions the elements
• Developer can overwrite positioning
  • el.style.position = "absolute"
  • el.style.left = "40px";
  • Browser does not use position=absolute elements for the calculation of the layout
• Element may change its positioning context:
  • absolute: Rendered independently (element is ignored for the positioning)
  • relative: Element is computed but then moved w.r.t. its positioning coordinates
  • static: Default.

Events

• Interaction between the DOM and JS via events
• e.g., mouse movements, clicks, entry/leave of HTML elements, change of elements, timing events, key events
• Important events:
  • Content of page has changed
  • Page and images are loaded successfully
  • Errors
• Event-oriented programming:
  • Code is executed only by events
  • Routines should be fast, because JS is blocked
  • Use additionally to timers and Web workers
• Advantage:
  • Easy to implement
• Disadvantage:
  • Bad load for multi-process systems

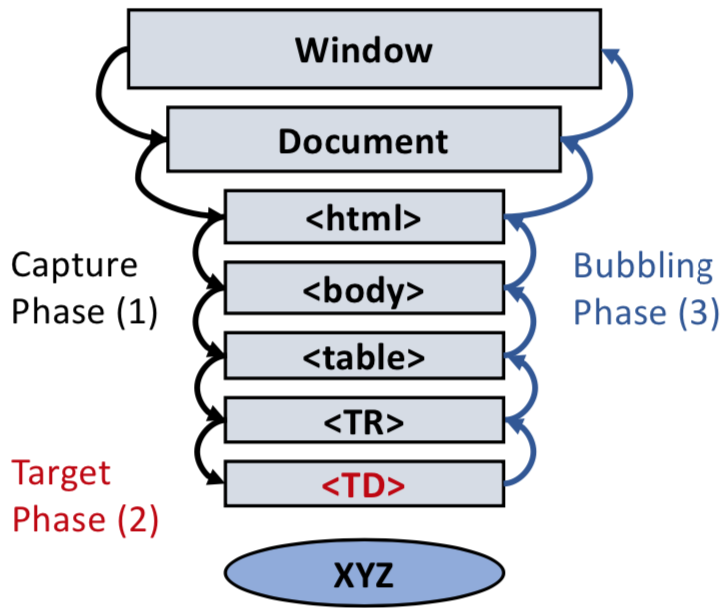

Event Handling

• Event handling routine need-to-know:
  • Type of the event (Event object or a subclass)
  • Source of the event
  • Code to execute
• Approaches:
  • Event handler (e.g., el.addEventListener(...))
  • Directly in the HTML (e.g., onclick="...")
• Event object
  • type (e.g., click, mouseDown)
  • timeStamp
  • currentTarget (element to which the event handler is bound)
  • target (element which released the event)
• Types of events:
  • MouseEvent (with properties button, pageX, pageY, screenX, screenY)
  • KeyboardEvent (with properties keyCode, charCode)

Order of Event Execution

• Scenario:
  • Hierarchy of elements
  • The bottom most element was clicked
• Phases:
  1. Capture Phase
     • Top-down approach
     • Registration: e.addEventListener(type, handler, true)
  2. Target Phase
  3. Bubbling Phase
     • Bottom-up
     • Registration: e.addEventListener(type, handler, false)
• Stop the propagation: event.stopPropagation();
• Mostly, events register on the bubbling phase

Timer

• Use case: Animations, regular repeating of stuff
• Call after a specific time:
  • token = setTimeout(func, 50)
  • Here: 50 milliseconds
• Call periodically:
  • token = setInterval(func, 50)
• Cancel: clearInterval(token)

Concurrency

• JS handles events sequentially
• Run to completion semantics:
  • No multi-threading
  • No concurrency
• Simple model
• Problem:
  • Realize background tasks is hard

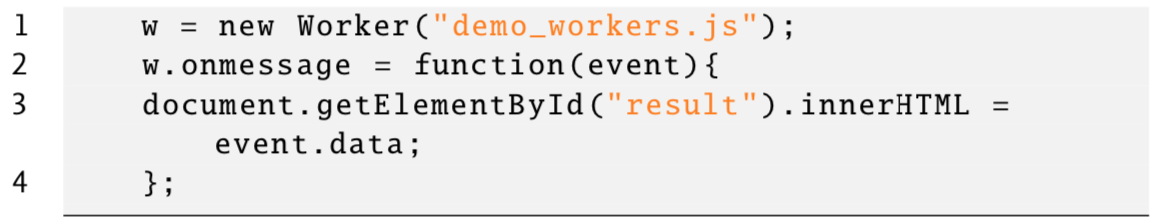

• Solution: Web Workers
  • Like a script run in the background
  • Events are still handled
  • Background code should be placed in a separate file
  • Communication: postMessage()
  • Quit: w.terminate()
  • Restriction: Web workers do not have any access to window, document or parent

Data Persistence

• Formerly, only Cookies were available
  • Used for user re-identification / session management
• Current techniques:
  • Web Storage:
    • LocalStorage and SessionStorage
  • Cache Storage:
    • For offline applications (experimental)
    • Service Worker interface
  • IndexedDB:
    • Transactional database managing JS-based objects
    • Flexible and fast access
• User re-identification:
  • Problem:
    • HTTP requests are stateless
    • But users need to be re-identified for sessions
  • Formerly: Cookies
  • WebStorage

Cookies

• Formerly used for sessions and tracking
• Headers
  • Response: Set-Cookie: foo=bar
  • Request: Cookie: foo=bar; baz=bar
• Limitations:
  • Only send in the origin of the server
  • Expiration date
  • Size restriction (4 KB)
  • Number of cookies (max. 50)
• Use cookies as client-side storage?
  • Bad idea
  • Users have control over cookies (CRUD)
  • Users are skeptical against cookies (because of tracking, Do Not Track header)
• Security
  • Users may modify/ceate cookies
  • Encryption protects Confidentiality and Integrity, but cookies are still deletable
  • Maybe, use references for server-side data
  • HttpOnly flag: Protect cookies against scripts
  • Secure flag: Transmit cookies only over HTTPS
  • Problems: XSS + CSRF
• Advantage:
  • Good for sessions
• Disadvantage:
  • Bad for client-side persistent storage

WebStorage

• sessionStorage: Persistence tailored to runtime of tab/window
• localStorage: Persistence completely tailored to domain
• Access: getItem(), setItem()
• Changes of the storage: StorageEvent
• Limitation: 10 MB

---

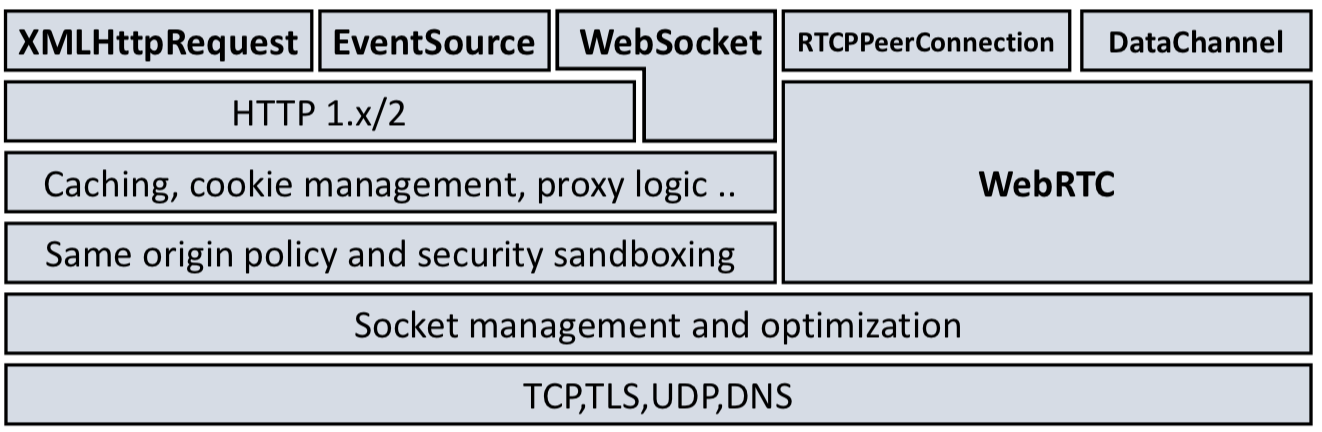

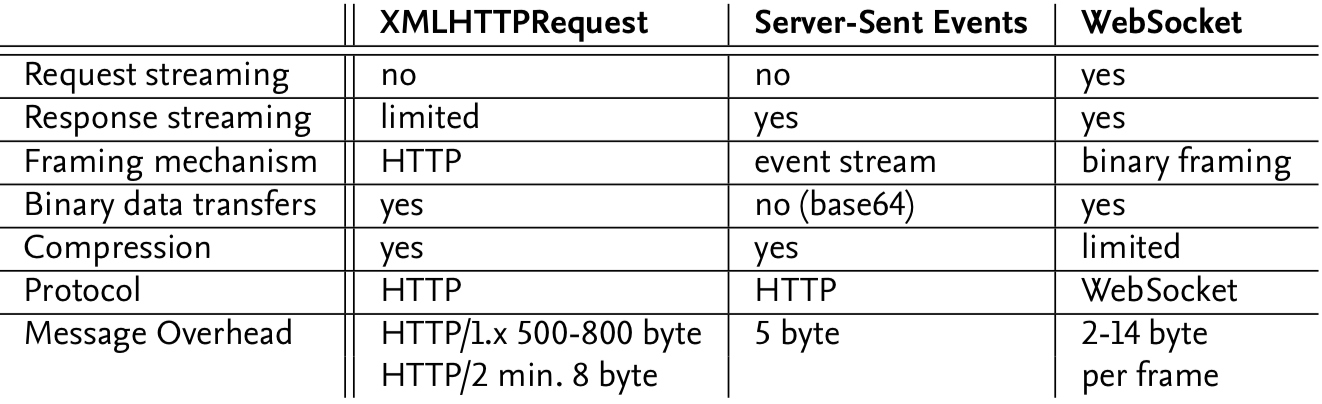

Communication

XMLHttpRequest (XHR)

• Motivation:
  • Updating the page content requires a refresh
  • XHR: Scripts could send requests in the background (basis for AJAX)
• History
  • 1999: XHR implemented in IE 5 (XHR and XML were connected quasi randomly)
  • 2006: W3C Draft
  • 2008: XMLHttpRequest Level 2
  • 2011: Drafts we merged to XMLHttpRequest specification
• XHR is communication interface:
  • Request management, caching, authentication, security mechanisms
  • Adding headers is possible (setRequestHeader())
  • Restricted headers:
    • Access-Control-*, Cookie, Origin, Referer are prohibited (Browser deletes them)
    • Origin header must be protected due to the Same-Origin-Policy (e.g., read cookies)
• Summary:
  • Support interactive websites without reloading them
  • Comfortable / easy
  • Real-Time Notifications are not optimal
  • Not strom-orientiert (can be emulated)

Implementation

• Supported formats:
  • ArrayBuffer (fixed-length binary data)
  • Blob (binary data)
  • Document (XML, HTML file)
  • JSON
  • Text
  • Specification:
    • Content-Type header or
    • xhr.responseType = '<type>'
• Events:
  • readystatechange (state has changed)
  • loadstart (request started)
  • progress (data is being sent/received)
  • load (request successfully finished)
  • loadend (request finished; even if failed)
  • abort/error
• Possible values for readyState:
  • 0 UNSENT: open() was not called
  • 1 OPENED: send() was not called
  • 2 HEADERS_RECEIVED: send() called and headers are available
  • 3 LOADING: Download not finished but part-response available
  • 4 DONE: Operation finished
• Properties:
  • xhr.response (response data)
  • xhr.status (status code of the response)
• Methods:
  • xhr.open(<method>, <uri>)
  • xhr.send(<data>): Send request (data is optional)

Examples

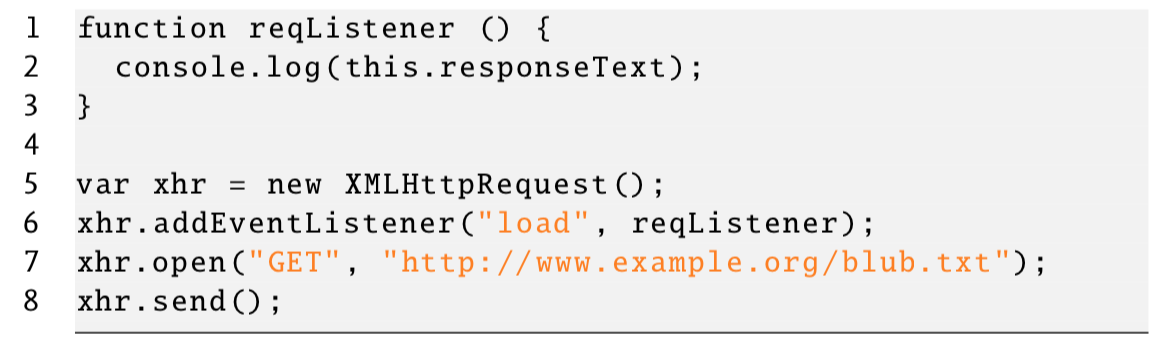

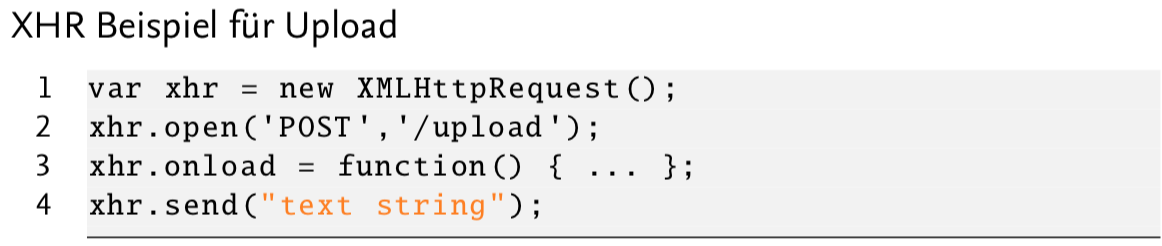

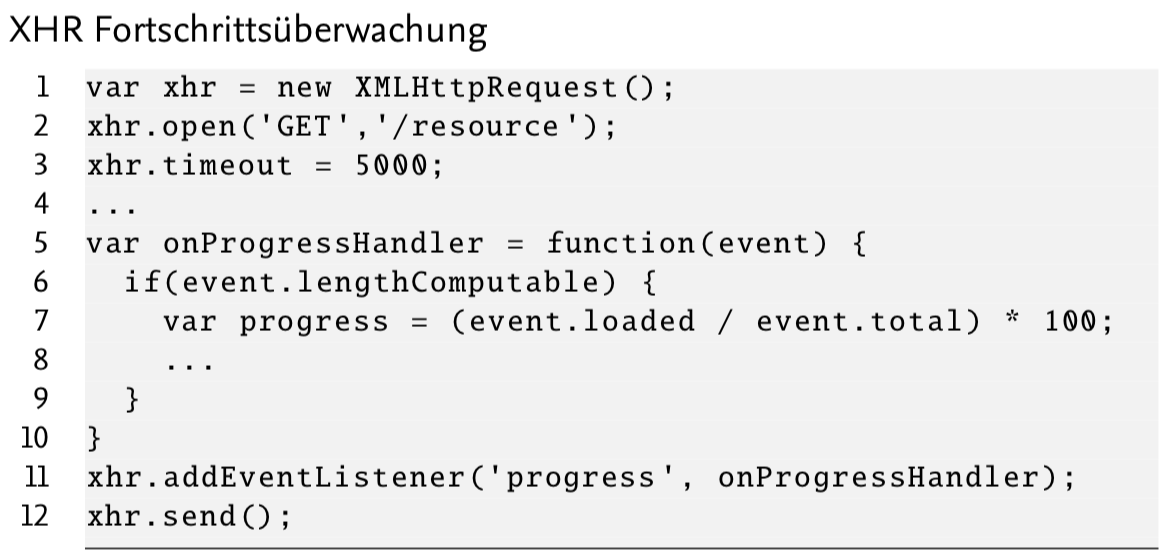

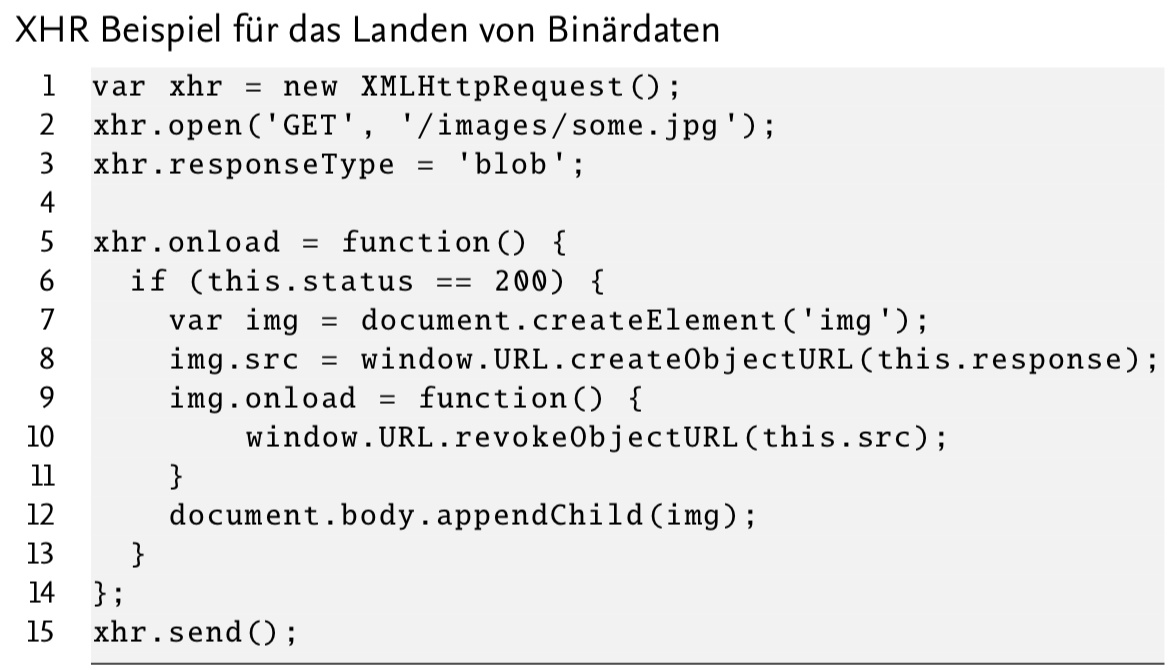

Simple GET: Binary data: Upload: Progress:

Real-Time Notifications

• Motivation:
  • Client is notified if the server has new messages/data
• Approaches:
  • XHR-Polling (naive)
  • Comet

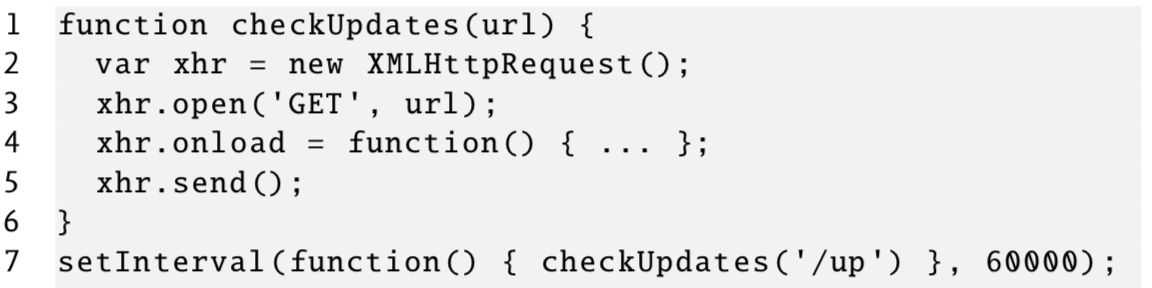

XHR-Polling

• Send every \( k \) seconds a request
• Request/response pair has 800 Byte overhead
• Problem:
  • Flooding
  • Energy consumption on mobile devices
  • New messages are only sent in the polling interval

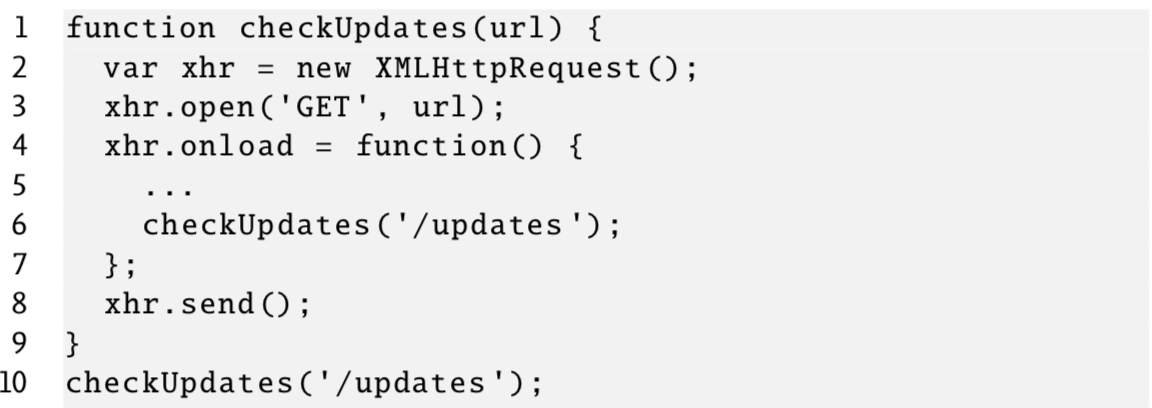

Comet

• Like a Ping-pong ball
• Client sends a request to server
• Server keeps the request and sends a response if a new message occurs
• If the client receives a response she sends a new response

Cross-Origin Resource Sharing

• Scenario:
  • Scripts wants to receive resources from a foreign server (usually prohibited due to the SOP)
  • Foreign server may decide which origin may send requests
  • Browser protects the user by enforcing the policy
• Client headers:
  • Request if the desired method and the desired headers are allowed
  • Access-Control-Request-Method: POST
  • Access-Control-Request-Headers: X-Frame-Options
• Response headers:
  • Access-Control-Allow-Origin: *
    • Every origin is allowed
  • Access-Control-Allow-Methods: GET, POST, PUT
  • Access-Control-Allow-Headers: X-Frame-Options
• Request types:
  • Simple cross-origin requests:
    • Methods GET, POST, HEAD
    • Standard Content-Type
    • Standard headers
  • Complex cross-origin requests:
    • Custom headers, credentials, Cookies
    • Requires a preflight request (method OPTIONS)

Server-Sent Events

• Motivation:
  • Provide real-time notifications
  • XHR is not practical (flooding)
• Two components

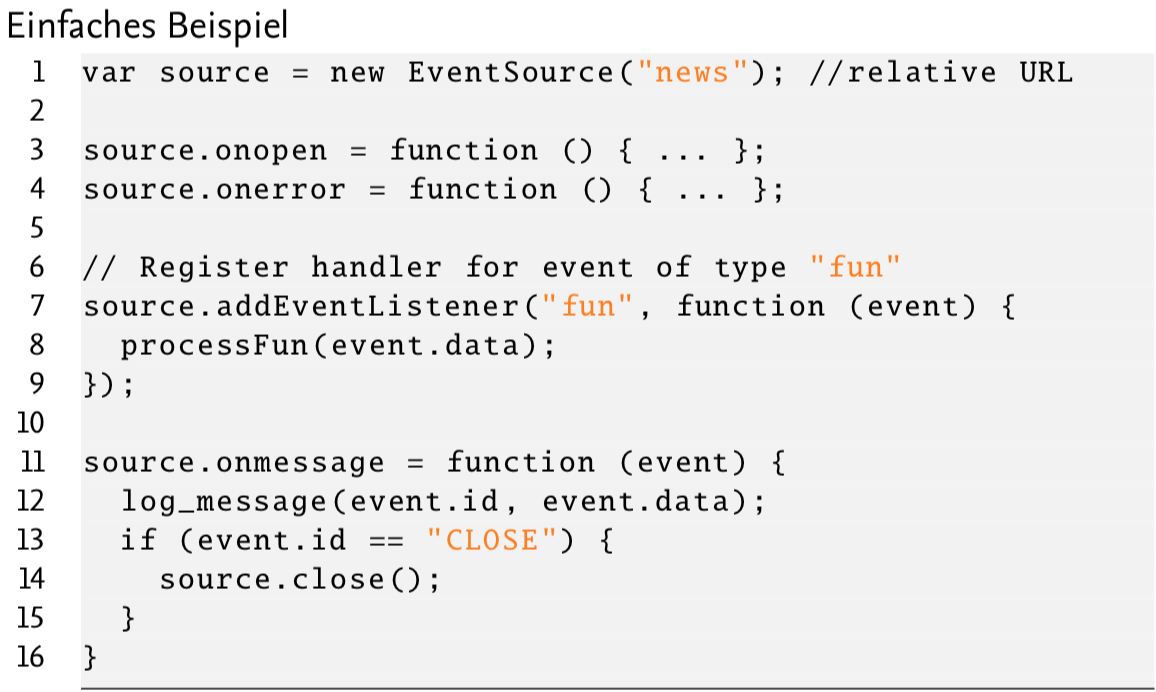

  • EventSource interface:
    • Browser-side
    • Handling the push notifications from the server
  • stromgewahrtes Data format (on top of HTTP which is verbindungsorientiert)
• Properties
  • SSE provides a stromorientierte message interface (raw stream of information)
  • Support for the re-establishment of lost connections (using message IDs)
  • Compression (gzip) is possible
• Workflow:
  • Establish a connection
  • Received data is processed (e.g., find message borders)
  • If a message is identified, the event is fired

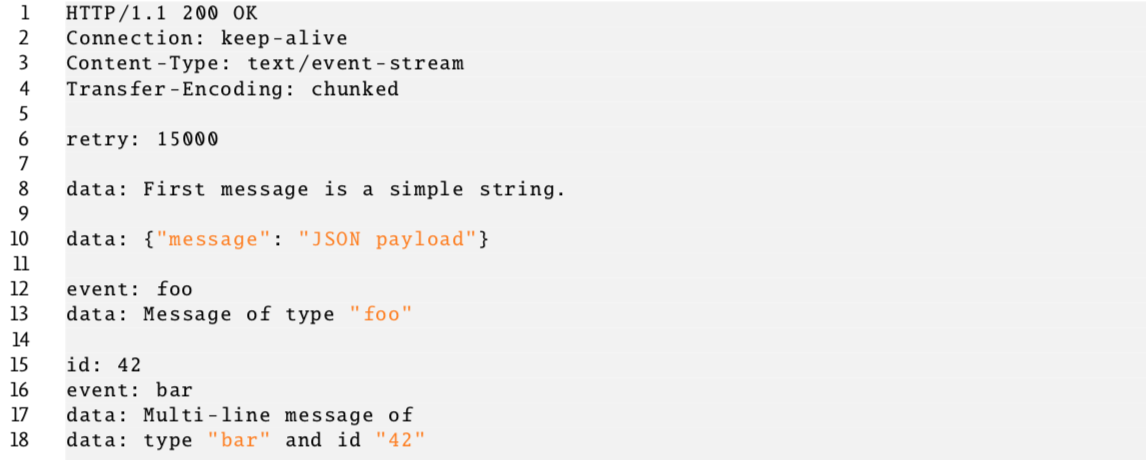

• Event Stream Protocol
  • Request:
    • Browser sends regular HTTP GET
    • Accept: text/event-stream
    • Request SSE events
  • Response:
    • Server sends a stream of messages
    • Transfer-encoding: chunked
• Format:
  • Support text- and JSON-based messages
  • Messages may have a type
  • Messages may have an ID
• Connection lost:
  • Client stores message IDs (knowing which message is missing)
  • On start, the server proposes an interval after which the connection should be re-established
  • If the connection is lost, the browser can send a Last-Event-ID: 42 header
  • e.g., GET /stream HTTP/1.1
    • Accept: text/event-stream
    • Last-Event-ID: 42
• Problems:
  • No stromorientierte connection from browser to server
  • UTF-8 only (bad for binary data)

WebSocket

• Motivation
  • Bi-directional and stromorientiert
  • Look-and-feel of unix-sockets
• Features:
  • Support of the SOP
  • Compatible to HTTP
  • Efficient message format
  • Extensible
• Trivia:
  • W3C recommendation
  • RFC 6455 (protocol definition)
• URI scheme:
  • Protocol ws: Plain text communication
  • Protocol wss: Encrypted communication using TCP/TLS
  • Reason for two schemes:
    • Web Sockets are usable between any two clients
    • Usually, used for the communication between browser and berver

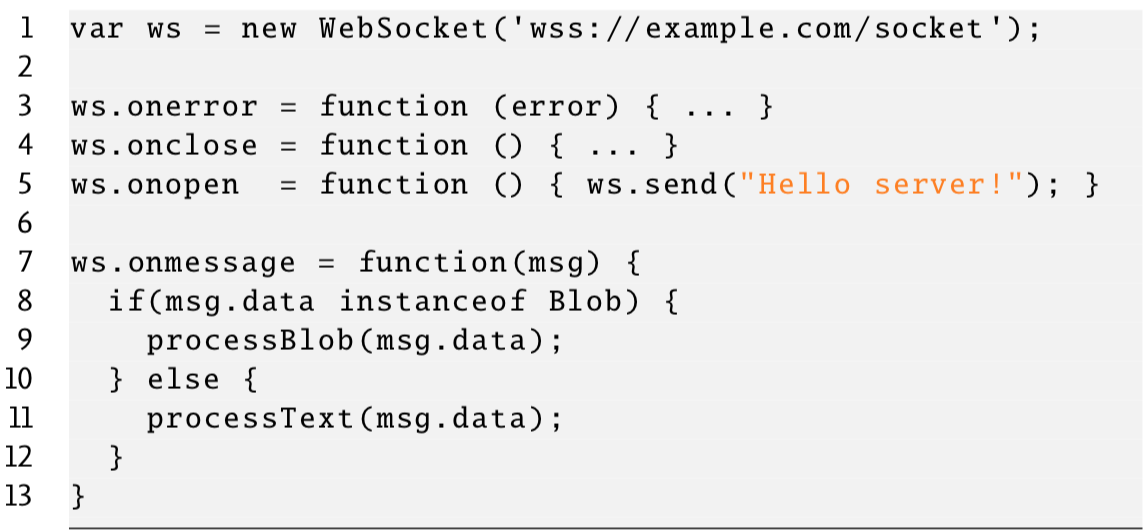

• Receiving/sending messages:
  • Complete messages are sent/received (no caching required)
  • Asynchronous Interface
  • Supported data types:
    • Text
    • Blob
      • Immutable
      • Can be converted into ArrayBuffer
    • ArrayBuffer (kept in memory)
    • etc.
  • Sending messages:
    • socket.send("foo")
    • send() is non-blocking (asynchronous)
    • bufferedAmount: How much data is unsent on client-side?
• Protocol agreement:
  • Transmission is either binary or UTF-8
  • Browser and server must agree on the sent format
  • Protocol agreement is supported
  • Example:
    • new WebSocket("wss://.../socket", ['proto1', 'proto2'])
    • ... if (ws.protocol == 'proto1') { ...
• Establish a connection:
  • Use the HTTP-Upgrade
  • CORS is supported
  • Request headers:
    • Sec-WebSocket-Version: Supported version on client-side (currently, 13)
    • Sec-WebSocket-Key: Automatically generated key (not security-relevant)
    • Sec-WebSocket-Protocol: List of possible protocols
    • Sec-WebSocket-Extensions: List of possible extensions
  • Response headers:
    • Sec-WebSocket-Accept: Server-response for the key
    • Sec-WebSocket-Protocol: Selected protocol
    • Sec-WebSocket-Extensions: Selected extension

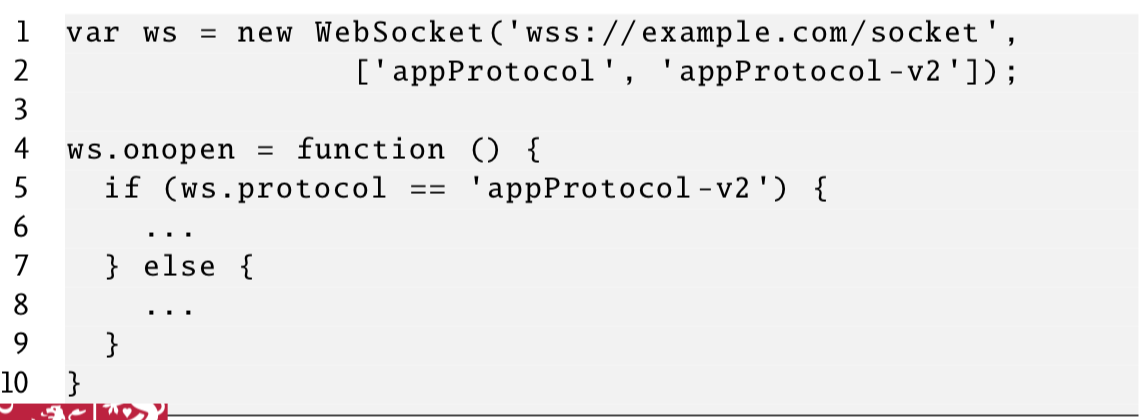

Protocol agreement (JavaScript):

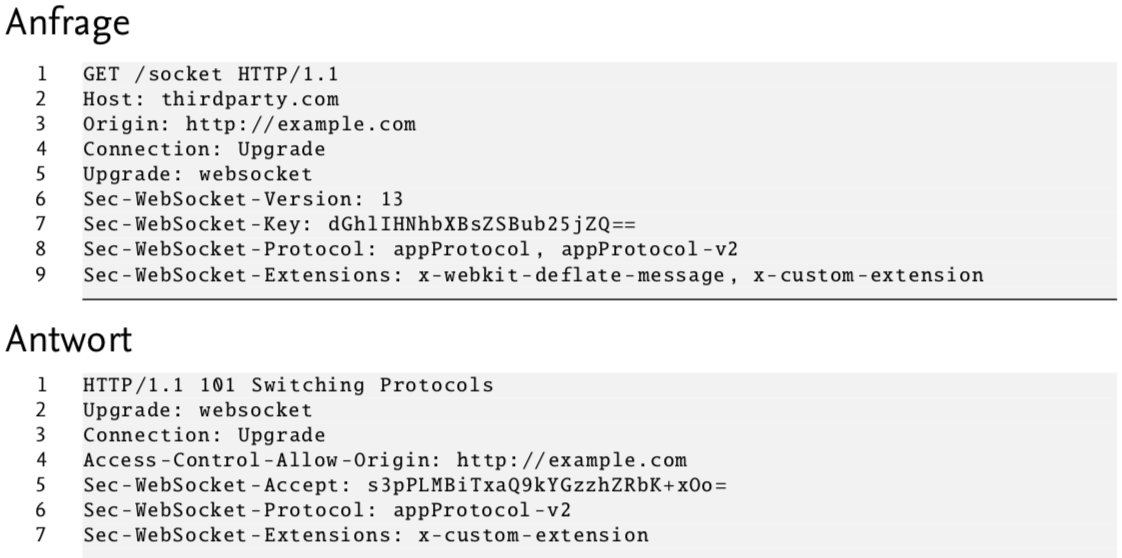

HTTP Upgrade:
